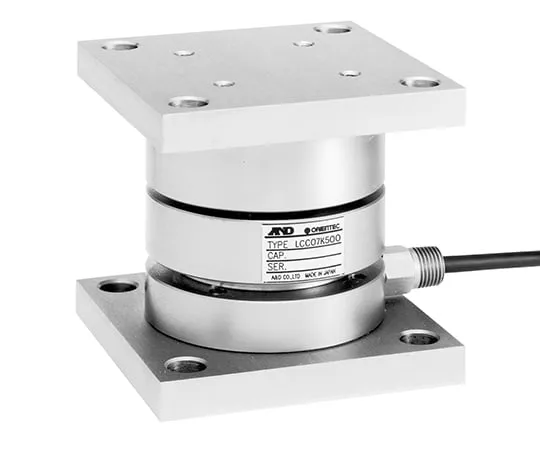

62-3149-73 Orl stainless sealing structure type load cell LCC07K500
Product Description
Product Model: 62-3149-73Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-73
Product Brand: A&D
Features
- All-Stainless Steel Load Cell for Hoppers and Tanks Ideal for Building Platform and Tank Scale Requiring Corrosion Resistance
- Stainless Steel Welded Sealed Structure with Rocking Mechanism Type Stopper Fittings.
- Ideal for hoppers and tank scales in food and medicine markets.
- Compression type.
- (A rocking mechanism is a mechanism that provides a restoring force when a lateral load is applied by a ball receiving mechanism.)
- Temperature effect at 0 point: 0.04%ofR.O./10°C • Temperature effect at output: 0.014%ofLoad/10°CType • Cable thickness/length: φ5.6/5 m • Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 95 x (D) 101 x (H) 101 mm
- rating capacity: 5 kN (509.9 kg)
- rating Output: 2 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 780 + 20 Ω
- Resistance between output terminals: 700 ± 10 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
