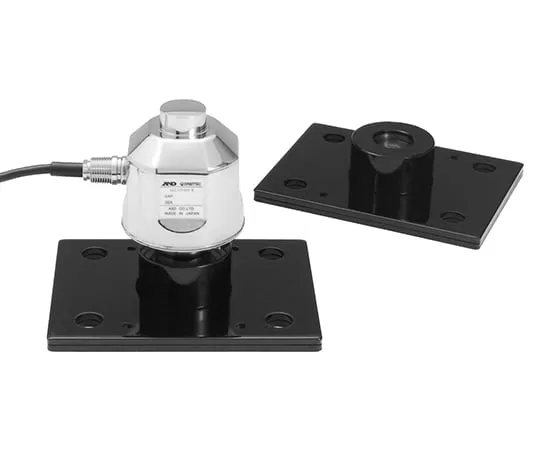

62-3149-68 Column type stainless steel load cell LCC11T020-K
Product Description
Product Model: 62-3149-68Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-68
Product Brand: A&D
Features
- Column type stainless steel load cell for track scale
- Fully sealed stainless steel (body) for excellent corrosion and environmental resistance.
- Large capacity series ideal for large hopper scale and truck scale.
- Compression type.
- Temperature effect of 0 point: 0.019%ofR.O./10°CType. • Temperature effect of output: 0.010%ofLoad/10°CType. • Cable thickness/length: φ8/12m • Dustproof/waterproof: IP68 (depth 1.5 m/100 hours)
Spec
- External dimensions: (W) 200 x (D) 201 x (H) 151 mm
- rating capacity: 200 kN (20.39 t)
- rating Output: 2 mV/V ± 0.1%
- Allowable overload: 200% ofR.C., Limit overload: 300% ofR.C.
- Overall error: 0.016% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 800 ± 80 Ω
- Resistance between output terminals: 2200 ± 10 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -20 °C to 60 °C
