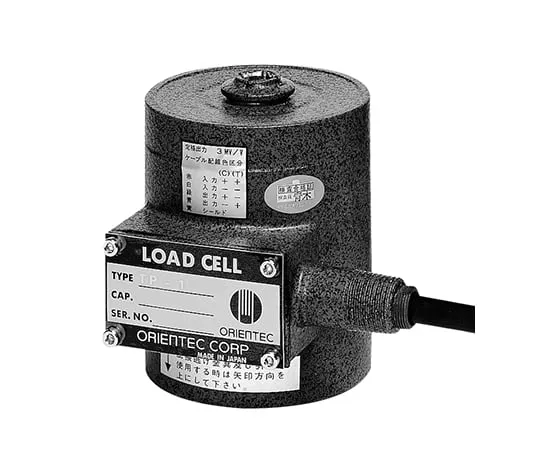

62-3149-46 Sealed Structure Type Load Cell TP-1
Product Description
Product Model: 62-3149-46Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-46
Product Brand: A&D
Features
- Sealed structure type load cell for hoppers and tanks
- Fully sealed structure type that can withstand harsh environments.
- Large electrical output of 3mV/V, stable for a long time with little aging.
- Tension type.
- Temperature effect at 0 point: 0.03%ofR.O./10°C • Temperature effect at output: 0.03%ofLoad/10°C • Cable thickness/length: φ9.7/3 m • Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 115 x (D) 108 x (H) 89 mm
- rating capacity: 10 kN (1.020 t)
- rating Output: 3.0592 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 300% ofR.C.
- Overall error: 0.05% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 20 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 350 ± 3.5 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 75 °C
