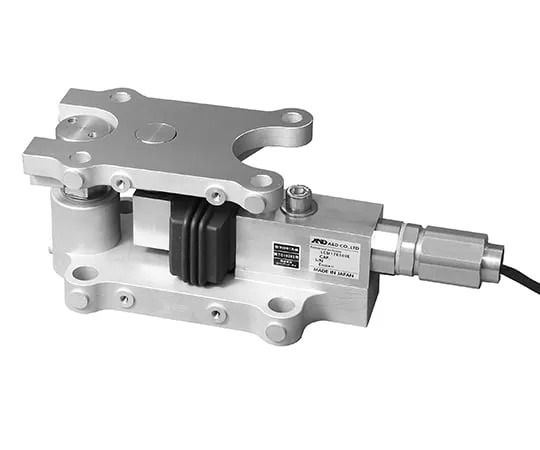

62-3149-23 Stainless Steel Pressure Resistant Explosion-proof type Beam Type Load Cell Integrated Anti-Sway Metal Bracket with Lifting Prevention Mechanism LCM17K100E-M
Product Description
Product Model: 62-3149-23Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-23
Product Brand: A&D
Features
- Stainless Steel Pressure Resistant Explosion-Proof Type for Platform Scale, Tank and Hopper Scale with Anti-Sway Bracket Integrated Load Cell with Anti-Sway Bracket • Ideal for applications where corrosion resistance is required in environments where combustible hazardous materials are handled.
- Ideal for scales and tanks.
- For both tension and compression.
- Explosion Grade and Ignition Level [ExdIIBT4] Applicable to 1 and 2 locations
- Temperature effect at 0 point: 0.028%ofR.O./10°C
- Temperature effect at output: 0.011%ofLoad/10°CType
- Cable thickness/length: φ7/5m
- Dust-proof/waterproof: IP54
Spec
- External dimensions: (W) 118 x (D) 124 x (H) 324 mm
- rating capacity: 1 kN (102.0 kg)
- rating Output: 0.5 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 2% of R.O.
- Resistance between input terminals: 390 ± 30 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
