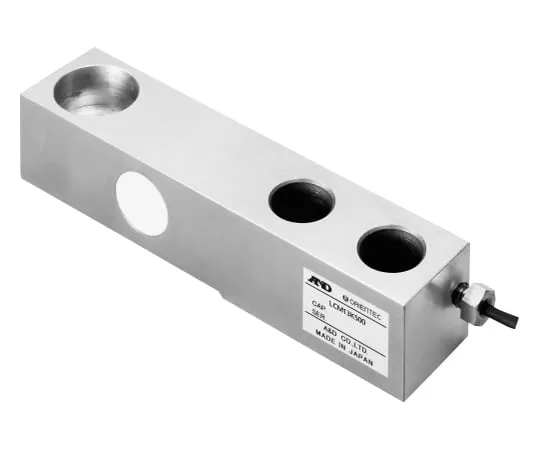

62-3149-15 All Stainless Beam Type Load Cell LCM13K500
Product Description
Product Model: 62-3149-15Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-15
Product Brand: A&D
Features
- All Stainless Steel Load Cell for Platform, Hopper and Tank
- Ideal for building platforms and tank scales that require corrosion resistance.
- Can be ***d for both tension and compression, and easy to install.
- Temperature effect at 0 point: 0.016%ofR.O./10°CType. • Temperature effect at output: 0.013%ofLoad/10°CType. • Cable thickness/length: φ4/3m • Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 32 x (D) 32 x (H) 130 mm
- rating capacity: 5 kN (509.9 kg)
- rating Output: 2 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 380 Ω, ±: 20 Ω
- Resistance between output terminals: 350 ± 3.5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
