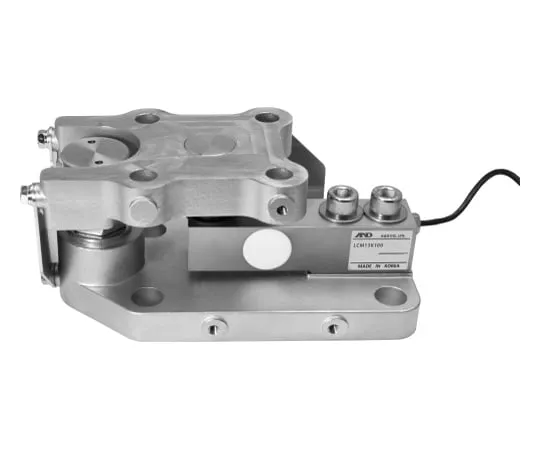

62-3149-07 Rolled Stainless Beam Load Cell Integrated Anti-Sway Metal Bracket with Lifting Prevention Mechanism LCM13K100-M
Product Description
Product Model: 62-3149-07Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-07
Product Brand: A&D
Features
- All-Stainless Steel Load Cell for Platform Scale, Hopper and Tank
- Ideal for building tank and hopper scales that require corrosion resistance.
- For compression.
- The stopper mechanism is built in, and the stopper gap is adjusted, so it can be easily installed.
- Temperature effect at 0 point: 0.016%ofR.O./10°CType. • Temperature effect at output: 0.013%ofLoad/10°CType. • Cable thickness/length: φ4/3m • Dustproof/waterproof: IP67
Spec
- External dimensions: (W) 97 x (D) 104 x (H) 208 mm
- rating capacity: 1 kN (102.0 kg)
- rating Output: 2 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 380 Ω, ±: 20 Ω
- Resistance between output terminals: 350 ± 3.5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
