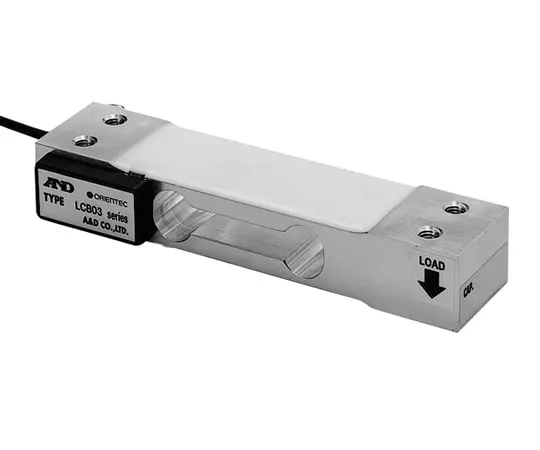

62-3148-95 Single Point Load Cell LCB03K020M
Product Description
Product Model: 62-3148-95Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-95
Product Brand: A&D
Features
- Load cell for balance and scale
- High-performance, moisture-proof, compact and lightweight type (four corners adjusted).
- Temperature effect at: 0.023% ofR.O./10 °C
- Temperature effect of output: 0.014% ofLoad/10 °CTyp.
- Cable Thickness/Length: φ 3.5 mm/0.4 m
- Surface Size: 300 x 300 mm
- Dustproof/Waterproof: IP 54
Spec
- External dimensions : ( W ) 22 x ( D ) 43 x ( H ) 130mm
- Rating capacity : 200 N (20.39kg)
- rating output: 2mV/V ±10%
- Allowable overload: 150% ofR.C., marginal overload: 200% ofR.C.
- Overall error: 0.02% ofR.O.
- Recomm***ed applied voltage: DC5 to 12 V, Maximum applied voltage: DC 15 V
- Zero balance: ±5% of R.O.
- Resistance between input terminals: 420 Ω ±: 30 Ω
- Resistance between output terminals: 350 ±5 Ω
- insulation resistance : 2000 MΩ/DC 50 V (B/E)
- Temperature compensation range: 10 ℃ to 40 ℃
