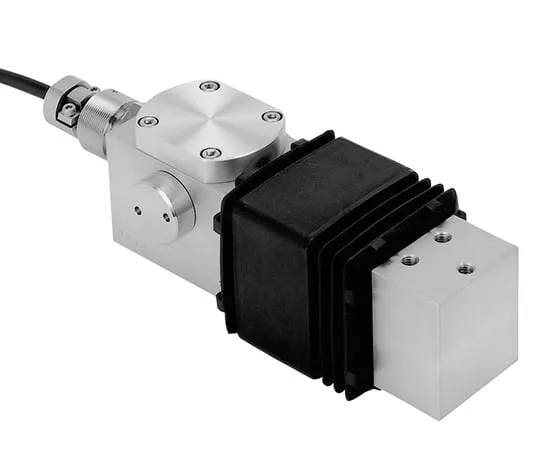

62-3148-92 Pressure Resistant Explosion-proof type Single Point Load Cell LCB01K030E
Product Description
Product Model: 62-3148-92Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-92
Product Brand: A&D
Features
- Pressure resistant explosion-proof load cell for balance and table: 400 mm x 400 mm (LCB01 K30/60), 400 mm x 600 mm (LCB02 K150), 600 mm x 700 mm (LCB06).
- Four corners adjusted, for both tension and compression.
- Explosion grade and ignition degree [ExdIIBT4] Applicable to 1 and 2 locations
- Temperature effect at 0 point: 0.05%ofR.O./10°C
- Temperature effect at output point: 0.03%ofLoad/10°CType
- Load surface size: 400 x 400 mm
- Cable thickness/length: φ7/6m
- Dustproof/waterproof: IP54
Spec
- External dimensions: (W) 81 x (D) 60 x (H) 193 mm
- rating, capacity: 300 N (30.59 kg)
- rating Output: 0.3059 mV/V ± 10%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- 0 Balance: 20 ± 5% of R.O.
- Resistance between input terminals: 418 ± 20 Ω
- Resistance between output terminals: 348.5 ± 5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
