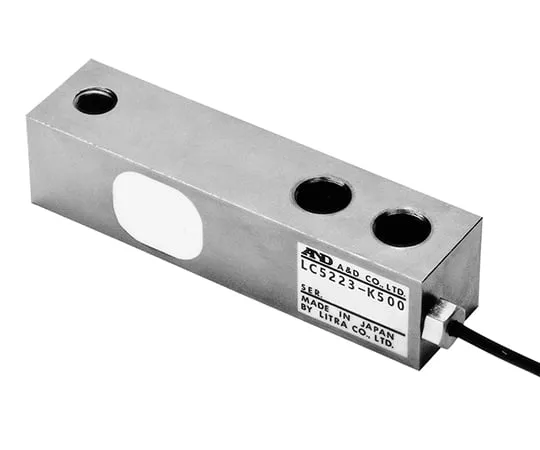

62-3148-86 Beam Type Load Cell LC5223-K500
Product Description
Product Model: 62-3148-86Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-86
Product Brand: A&D
Features
- Beam-Type Load Cell for Platform Scale and Tank
- Ideal for *** as a platform scale as well as a tank hopper.
- Moisture proof treatment is applied, and it is easy to handle with a small and light square section beam type.
- For both tension and compression.
- Temperature effect at 0 point: 0.07%ofR.O./10°C. Temperature effect at output: 0.02%ofLoad/10°CType. Cable thickness/length: φ4/3m Dustproof/Waterproof: IP67
Spec
- External dimensions: (W) 32 x (D) 32 x (H) 130 mm
- rating capacity: 5 kN (509.9 kg)
- rating Output: 2.0394 mV/V ± 0.2%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.03% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: approx. 400 Ω
- Resistance between output terminals: 350 ± 3.5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 60 °C
