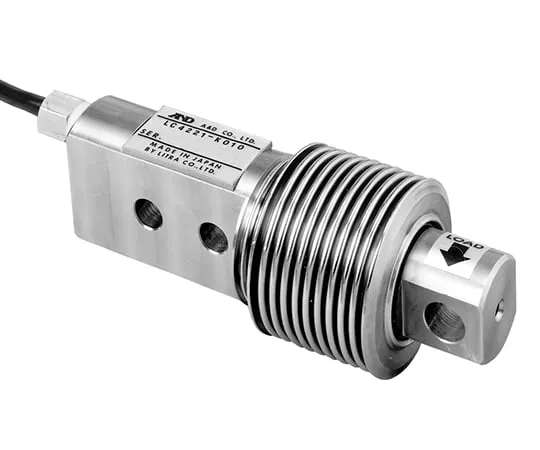

62-3148-77 All Stainless Steel Sealed Structure Beam Type Load Cell LC4221-K010
Product Description
Product Model: 62-3148-77Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-77
Product Brand: A&D
Features
- All Stainless Steel Sealed Structure Beam Type Load Cell for Platform Scale and Tank
- Made of All Stainless Steel, Small and Lightweight. Achieves high reliability even in harsh environments.
- For both tension and compression.
- Temperature effect at 0 point: 0.07%ofR.O./10°C. Temperature effect at output: 0.02%ofLoad/10°CType. Cable thickness/length: φ6/5m Dustproof/Waterproof: IP67
Spec
- External dimensions: (W) 48 x (D) 48 x (H) 133 mm
- rating, capacity: 100 N (10.20 kg)
- rating Output: 2.0394 mV/V ± 0.2%
- Allowable overload: 200% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.05% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: approx. 400 Ω
- Resistance between output terminals: 350 ± 3.5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 60 °C
Related product recommendations
You may also be interested in the following products
toner
65-1845-22 SpotSee：Desc***ing Temperature Indicator CM-3℃-10
model: 65-1845-22
brand: SpotSee
toner

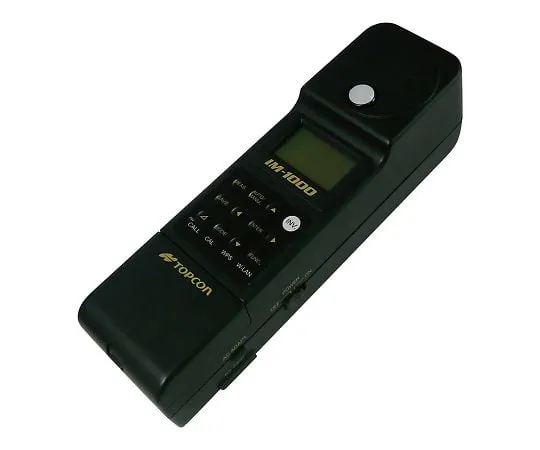

4-2436-21 ［Discontinued］Color R***ering Illuminometer main unit IM-1000R
