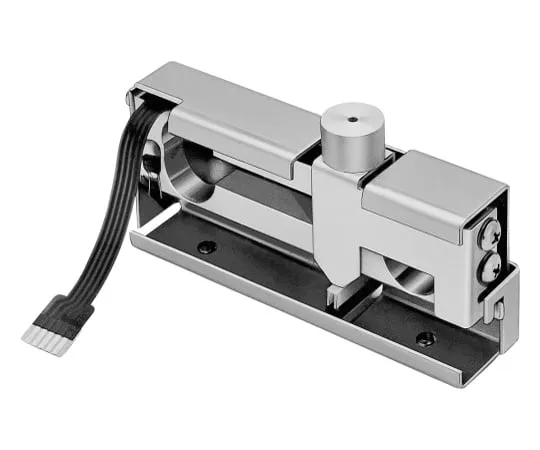

62-3148-61 Single Point Type Load Cell LC4001-G120
Product Description
Product Model: 62-3148-61Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-61
Product Brand: A&D
Features
- Load Cell for Balance and Base
- Moisture-proof, Small, Lightweight Type (Adjusted to Four Corners).
- Ultra-high sensitivity, high resolution of 10 mg.
- For both tension and compression.
- Temperature effect of 0 point: 0.14%ofR.O./10°C • Temperature effect of output: 0.02%ofLoad/10°CType. • Cable thickness/length: F.P.C. 75 mm • Surface area size: 120 x 120 mm • Dustproof/waterproof: IP22
Spec
- External dimensions: (W) 66 x (D) 32 x (H) 127 mm
- rating, capacity: 1.2 N (122.4 g)
- rating output: 0.4079 mV/V or more
- Allowable overload: 300% ofR.C., Limit overload: 1000% ofR.C.
- Overall error: 0.015% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- 0 Balance: 40 ± 25% of R.O.
- Resistance between input terminals: approx. 400 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 500 MΩ/DC 50 V
- Temperature coverage: -5 °C to 35 °C
