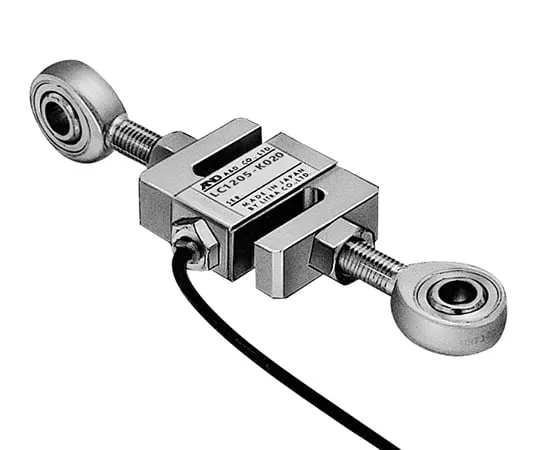

62-3148-53 S-Shaped General Purpose Load Cell LC1205-K020
Product Description
Product Model: 62-3148-53Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-53
Product Brand: A&D
Features
- Load cell for hopper and tank
- Ideal for dynamic metering with a structure that is not easily affected by eccentric loads.
- For both tension and compression.
- Temperature effect at 0: 0.07% ofR.O./10 °C
- Temperature influence of output: 0.02% ofLoad/10 °C
- Cable Thickness/Length: φ 6/3 m
- Dustproof/Waterproof: IP 54
Spec
- External dimensions : ( W ) 64 x ( D ) 23 x ( H ) 50mm
- Rating capacity : 200 N (20.39kg)
- rating output: 1.5296 mV/V ±0.5%
- Allowable overload: 200% ofR.C., marginal overload: 250% ofR.C.
- Overall error: 0.02% ofR.O.
- Recomm***ed applied voltage: DC5 to 12 V, Maximum applied voltage: DC 15 V
- Zero balance: ±2% of R.O.
- Resistance between input terminals: about 400 Ω
- Resistance between output terminals: 350 ±3.5 Ω
- Insulation resistance: 5000 MΩ/DC 50 V
- Temperature compensation range: 10 ℃ to 60 ℃
