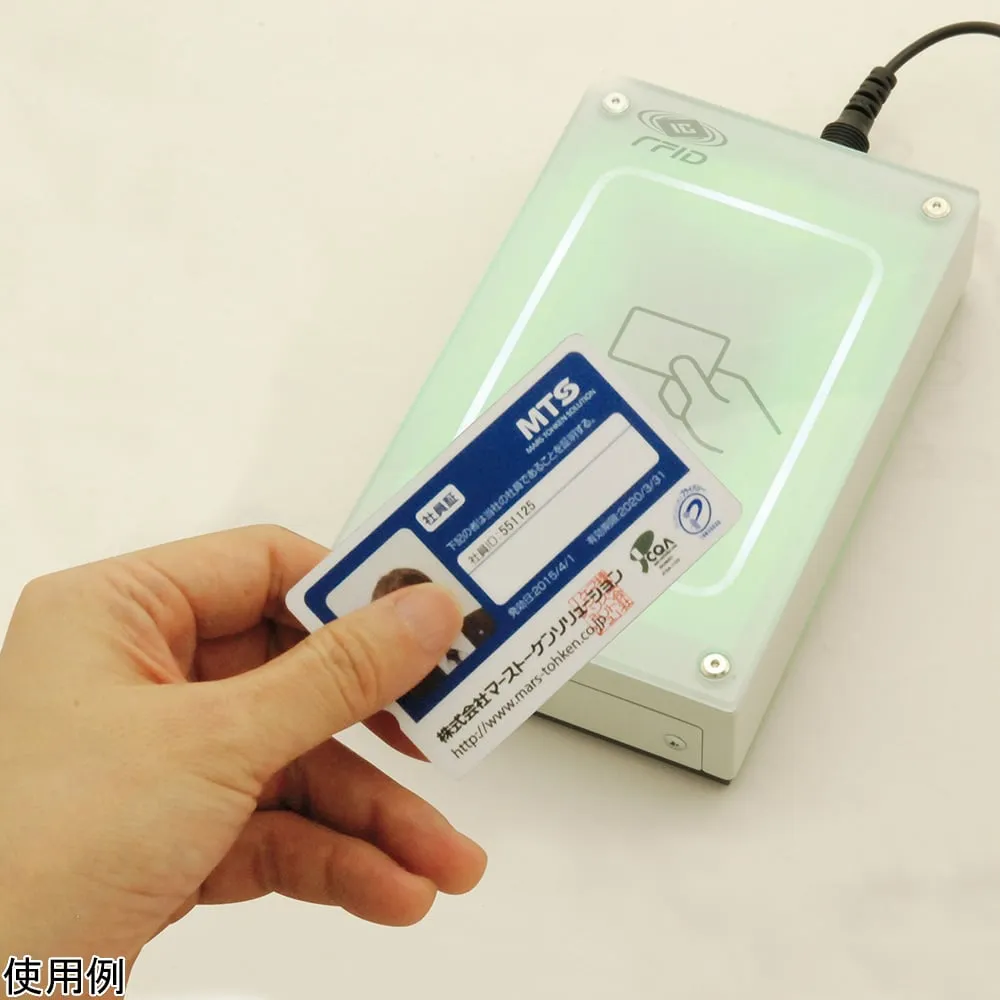

4-4317-01 RFID Reader/Writer Body MTR-115
model:
4-4317-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 4-4317-01 Features Intelligent reader/wr […]
Contact Us
Product Details
Product Model: 4-4317-01
Features
- Intelligent reader/writer with built-in NFC reader/writer for both FeliCa and Mifare.
- It can operate autonomously without a control computer.
- It reads IC cards on its own and s***s data to higher servers.
- Network-compatible IC card reader requires no USB connection.
Spec
- Specifications: Reader/Writer Body
- Display: LED: RGB x 6 lights
- Sound: 0.5 W speaker output (up to 1 W)
- External interface: Wired LAN/10 Base-T/100 Base-TX x 1 port, RS -232 C/TXD/RXD/RTS/CTS x 1 port
- Power: Rated voltage/12 VDC +/- 10% or IEEE 802.3 af-compliant POE hub/POE injector, maximum power consumption/6 W
- Dustproof and waterproof: IP3X
- RFID reader/writer: communication frequency/13.56 MHz, applicable IC tag/NFC-IP2 (Mifare classic (1K, 4k), Mifare Ultralight, FeliCa (non-cryptographic), FeliCa lite ISO/IEC 14443 Type B, ISO/IEC 15693 (I-CODE SLI, etc.)
- Size: 88 x 138 x 34 mm (excluding rubber feet and protrusions)
- Weight: approximately 450 g
