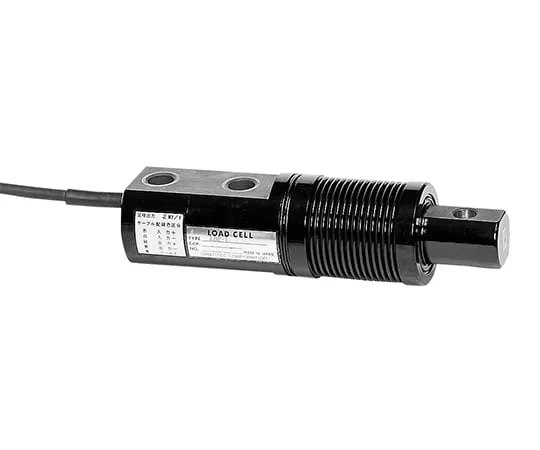

62-3148-31 Sealed Structure Beam Type Load Cell LBP-1
Product Description
Product Model: 62-3148-31Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-31
Product Brand: A&D
Features
- Sealed Load Cell for Platform Scale, Hopper, and Tank
- Easy fabrication of scale, hopper, etc.
- Dustproof and waterproof IP67.
- Fully sealed structure made of phosphorus bronze bellows with excellent environmental resistance.
- For both tension and compression.
- Temperature effect at zero point: 0.02%ofR.O./10°C. Temperature effect at output: 0.02%ofLoad/10°C. Cable thickness/length: φ7/3m
Spec
- External dimensions: (W) 68 x (D) 68 x (H) 210 mm
- rating capacity: 10 kN (1.020 t)
- rating Output: 2.0394 mV/V + 0.2% - 0%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.04% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 20 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 420 ± 40 Ω
- Resistance between output terminals: 347.5 ± 3 Ω
- insulation Resistance: 2000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 75 °C
