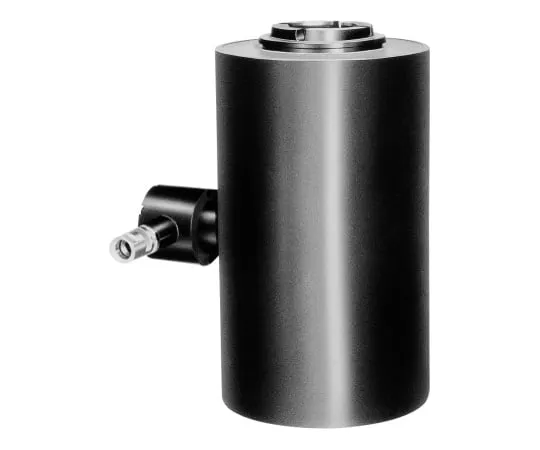

62-3148-18 Pressure Resistant Explosion-proof type Sealed Load Cell CP-10-FP
Product Description
Product Model: 62-3148-18Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-18
Product Brand: A&D
Features
- Pressure Resistant Explosion-Proof Type Sealed Load Cell for Hoppers and Tanks
- Ideal for construction of hoppers and tanks.
- Dustproof and waterproof IP67.
- Compression type.
- Explosion Grade and Ignition Degree [d2G4] Use Location 1, 2 Compatible
- Compression Type.
- Temperature at 0: 0.03%ofR.O./10°C Temperature at output: 0.03%ofLoad/10°C
Spec
- External dimensions: (W) 215 x (D) 293 x (H) 155 mm
- rating capacity: 98.067 kN (10 t)
- rating Output: 3 mV/V ± 0.1%
- Allowable overload: 150% ofR.C., Limit overload: 300% ofR.C.
- Overall error: 0.05% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 20 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 350 ± 3.5 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 75 °C
