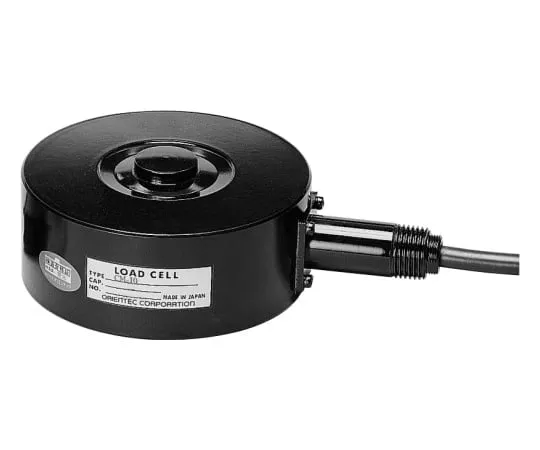

62-3148-06 Sealed Structure Type Small Load Cell CM-10
Product Description
Product Model: 62-3148-06Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-06
Product Brand: A&D
Features
- Sealed structure type small load cell for hopper/tank
- Tank/hopper type.
- Sealed structure containing inert gas.
- Small and thin for easy installation and maintenance.
- Dustproof and waterproof IP67.
- Compression type.
- Temperature effect at 0 point: 0.1%ofR.O./10°C. Temperature effect at output: 0.1%ofLoad/10°CType. Cable thickness/length: φ8.6/3 m
Spec
- External dimensions: (W) 50 x (D) 161 x (H) 114 mm
- rating capacity: 100 kN (10.20 t)
- rating Output: 2.0394 mV/V ± 0.5%
- Allowable overload: 150% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.25% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 18 V
- Zero balance: ± 2% of R.O.
- Resistance between input terminals: 425 ± 50 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 1000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 60 °C
