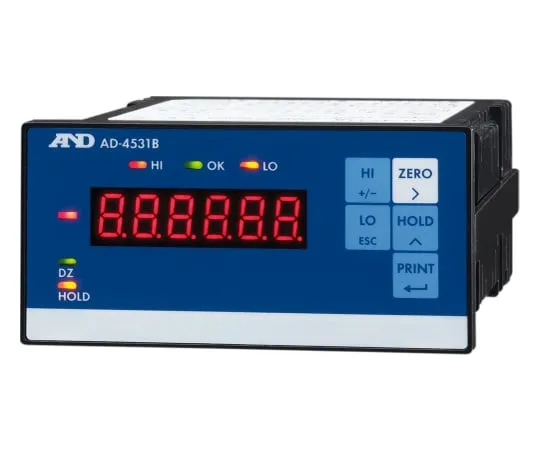

62-3147-88 Indicator AD-4531BJA
Product Description
Product Model: 62-3147-88Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-88
Product Brand: A&D
Features
- An indicator that converts a voltage signal from a sensor (strain gauge) at high speed and displays it digitally. Ideal for measuring load, pressure, torque, tension, etc. • Allows digital span calibration regardless of actual load. Zero correction values can be backed up.
- Plenty of output options.
- 100 A/D conversions per second.
- Upper and lower limit function (comparator). Hold function. Latch function. Chattering prevention function. Power on zero function.
Spec
- Input sensitivity: 0.15 μV/D or more
- 0 Adjustment Range: -35 mV to 35 mV
- Load cell applied voltage: 5 VDC
- Maximum load cells: 350 Ω sensors Maximum 3 pieces, 120 Ω sensors Maximum 1 piece connectable
- Temperature coefficient: 0 point ± 0.1 μV/°CTyp., span ± 8 ppm/°CTyp.
- Nonlinearity: any one of the 0.005% of F.S. options can be chisel mounted
