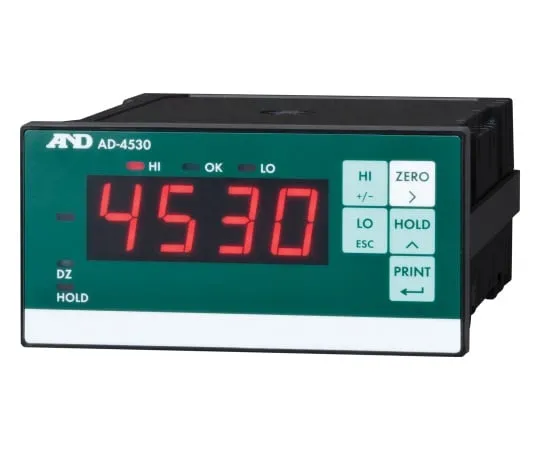

62-3147-87 Indicator AD-4530JA
Product Description
Product Model: 62-3147-87Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-87
Product Brand: A&D
Features
- This indicator converts the voltage signal from the sensor and displays it digitally.
- Suitable for measurement of load, pressure, torque, tension, etc.
- Digital span calibration is possible regardless of actual load.
- Upper and lower limit function (comparator). Hold function. Latch function. Chattering prevention function. Power on zero function.
Spec
- Input sensitivity: 0.4 μV/D or higher
- Zero adjustment range: 35 mV to 35 mV
- Load cell applied voltage: DC5V
- Maximum load cell count: 350 Ω sensor Maximum 3 pieces, 120 Ω sensor Maximum 1 piece connectable
- Temperature coefficient: 0 ±0.2 μV/℃Typ., Span ±30 ppm/℃Typ.
- Non-linearity: One of the 0.01% ofF.S. ±1d option can be equipped with chisel.
- Power Supply：AC100～240V 50/60Hz 約10W
