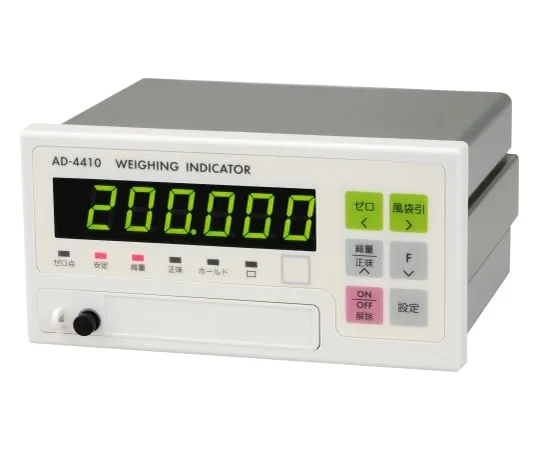

62-3147-75 Wing Indicator AD-4410
Product Description
Product Model: 62-3147-75Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-75
Product Brand: A&D
Features
- Vibration resistant waving indicator. Equipped with a newly developed high-performance digital filter.
- To inexpensively improve the performance of measuring instruments, such as automatic weight discriminators and CFWs, which structurally contain vibration sources.
- Can be calibrated where there is vibration. Powerful vibration removal (high performance digital filter).
- High speed (100 times/second), high accuracy.
- Implemented electric circuit with strong noise protection.
- The averaging hold function. Industry's first non-linearity correction using high-order formulas.
- RS-232C standard.
- Support for JISB7611-2:2009 (Level H)
Spec
- Input sensitivity: 0.15 μV/D or more
- 0 Adjustment Range: -35 mV to 35 mV
- Load cell applied voltage: 5 VDC, ± 5%, 120 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 8 pieces
- Temperature Coefficient: 0 Point ± 0.02 μV/°CTyp., ± 0.1 μV/°CMax., Span ± 3 ppm/°CTyp., ± 15 ppm/°CMax.
- Non-linearity: When the 0.005% of F.S. option is installed, the current loop of 20 mA cannot be ***d.
