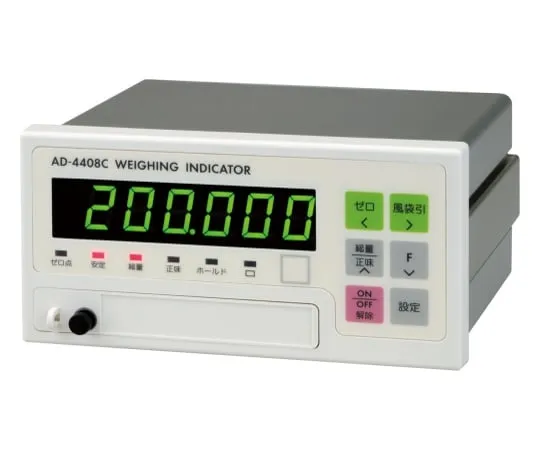

62-3147-74 Indicator AD-4408C
Product Description
Product Model: 62-3147-74Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-74
Product Brand: A&D
Features
- Vibration resistant waving indicator. Equipped with a newly developed high-performance digital filter.
- Direct connection with CC-Link is possible (CC-Link interface standard).
- Simple design for connection to sequencer.
- High speed (100 times/second), high accuracy.
- Lightweight and compact body, ideal for integration into control panel etc.
- Dustproof/Waterproof display (when panel is mounted).
- Up to 42 devices can be connected to 1 master (when only AD-4408C is configured).
- Support for JISB7611-2:2009 (Level H)
Spec
- Input sensitivity: 0.15 μV/D or more
- 0 Adjustment Range: -35 mV to 35 mV
- Load cell applied voltage: 5 VDC, ± 5%, 120 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 8 pieces
- Temperature Coefficient: 0 Point ± 0.02 μV/°CTyp., ± 0.1 μV/°CMax., Span ± 3 ppm/°CTyp., ± 15 ppm/°CMax.
- Nonlinearity: 0.005% ofF.S.
