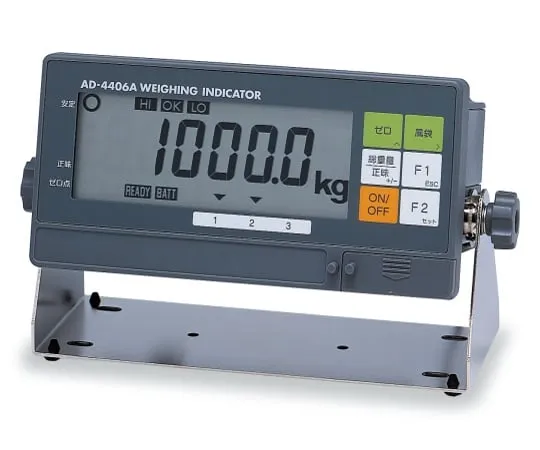

62-3147-67 Indicator AD-4406AJA
Product Description
Product Model: 62-3147-67Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-67
Product Brand: A&D
Features
- Small and light (650 g), easy to handle Wing Indicator
- Ultra-light weight of 650 g body. It is easy to handle and does not take up much space.
- Uses a large, easy-to-read 25 mm high LCD screen.
- The two-power system of AC adapter and alkaline battery eliminates the problem of securing power supply.
- Simple functions for lower prices.
- Upper and lower limit function (comparator). Memory with 4 sets of code numbers is possible.
- Addition and aggregation capabilities.
- Digital linearization, digital span. UniversalFlexiComs (UFC) capability.
Spec
- Input sensitivity: 0.15 μV/D or more
- 0 Adjustment Range: -35 mV to 35 mV
- Load cell applied voltage: 5 VDC, ± 5%, 60 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 4 pieces
- Temperature Coefficient: 0 Point ± 0.02 μV/°CTyp., ± 0.1 μV/°CMax., Span ± 3 ppm/°CTyp., ± 15 ppm/°CMax.
- Nonlinearity: 0.005% ofF.S.
