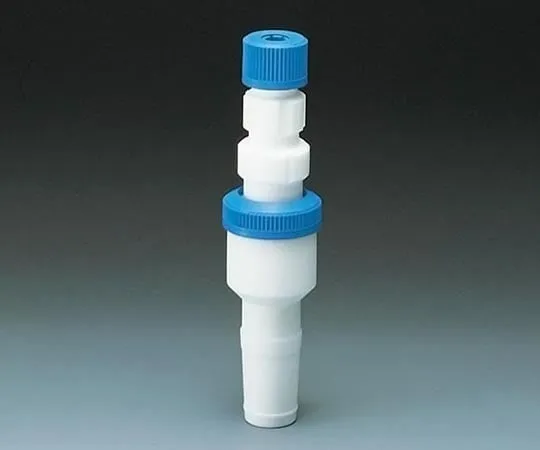

61-9944-29 Stirrer Seal (Universal Stirrer Guide) TS: 24/40 φ10 NR2031-001
Product Description
Product Model: 61-9944-29Product Brand: Flon Chemical F […]
Contact Us
Product Details
Product Model: 61-9944-29
Product Brand: Flon Chemical
Features
- Ideal for stirring with a large volume of 10φ and 16φ.
- Glass ball bearings are ***d so there is no wear on the stir bar and no PTFE shavings are generated.
Spec
- TS: 24/40
- Applicable stirring rod 10φ
- For low vacuum: To about 666Pa
- Operation pressure range: About 0.02 - 0.03MPa
- Allowable rotation speed: 500rpm (when using continuously), 800rpm (when using intermittently) *The above number may are not be met dep***ing on various conditions, Please be careful for the combination
- Liquid junction material: PTFE/PEEK/PTFE with filling material/Glass
