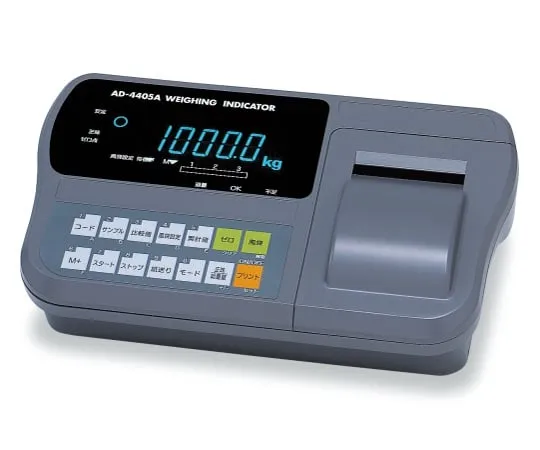

62-3147-60 Indicator AD-4405AJA
Product Description
Product Model: 62-3147-60Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-60
Product Brand: A&D
Features
- Winging indicator with built-in printer
- Built-in dot matrix printer. Prints 16 characters per line. Print items include not only measurement values, but also tare values, accumulated values, code numbers, etc., and date and time can also be printed beca*** of the built-in cal***ar. • UFC function that allows you to freely choose the print type is also supported.
- Uses 20 mm high fluorescent display tubes. Uses Tenkiy.
- Not only can it be ***d on a table, but it can also be incorporated into a control panel using a panel mount kit.
Spec
- Input sensitivity: 0.15 μV/D or more
- 0 Adjustment Range: -35 mV to 35 mV
- Load cell applied voltage: 5 VDC, ± 5%, 60 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 4 pieces
- Temperature Coefficient: 0 Point ± 0.02 μV/°CTyp., ± 0.1 μV/°CMax., Span ± 3 ppm/°CTyp., ± 15 ppm/°CMax.
- Nonlinearity: 0.005% ofF.S.
