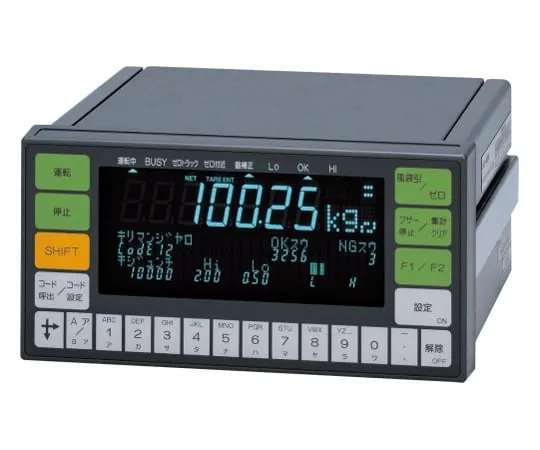

62-3147-52 Wing Indicator AD-4404
Product Description
Product Model: 62-3147-52Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-52
Product Brand: A&D
Features
- Belt type checker, roller type checker, and a winging indicator for weight checking on a platform
- Check scale system can be easily constructed.
- Suitable for various tasks by various selection modes.
- Display product names and total values on the screen.
Spec
- Input sensitivity: 0.3 μV/D or more
- 0 Adjustment Range: 0 mV to 20 mV
- Load cell applied voltage: DC 10 V, ± 5%, 230 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 8 pieces
- Temperature coefficient: 0 point ± 0.2 μV/°CTyp., span ± 8 ppm/°CTyp.
- Nonlinearity: 0.01% ofF.S.
- Up to 3 optional boards can be installed at the same time
