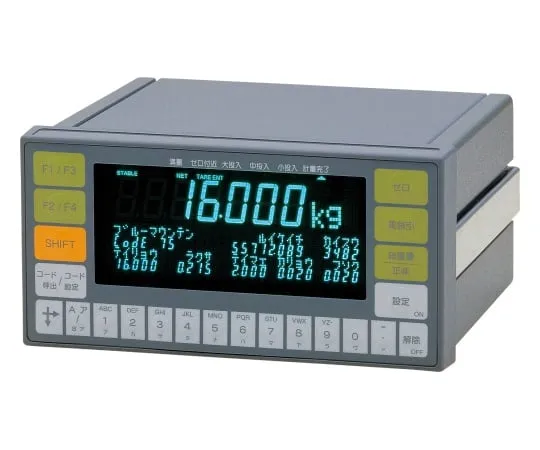

62-3147-39 Wing Indicator AD-4402
Product Description
Product Model: 62-3147-39Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-39
Product Brand: A&D
Features
- A field-bus-enabled winging indicator. Modbus, serial, parallel, analog and relay outputs are also available.
- Multifunctional type digital indicator.
- Large display section.
- Compact size ideal for control panel.
- Equipped with a rich weighing sequence.
- I/O for control.
- Cord-specific memory that is convenient for a variety of combinations.
- RS-485 is standard.
- External setup function.
- Automatic support for all power sources (AC85 V to AC250V without switching).
- Fieldbus enabled (optional)
Spec
- Input sensitivity: 0.3 μV/D or more
- 0 Adjustment Range: 0 mV to 20 mV
- Load cell applied voltage: DC 10 V, ± 5%, 230 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 8 pieces
- Temperature coefficient: 0 point ± 0.2 μV/°CTyp., span ± 8 ppm/°CTyp.
- Nonlinearity: 0.01% ofF.S.
- Up to 3 optional boards can be installed at the same time
