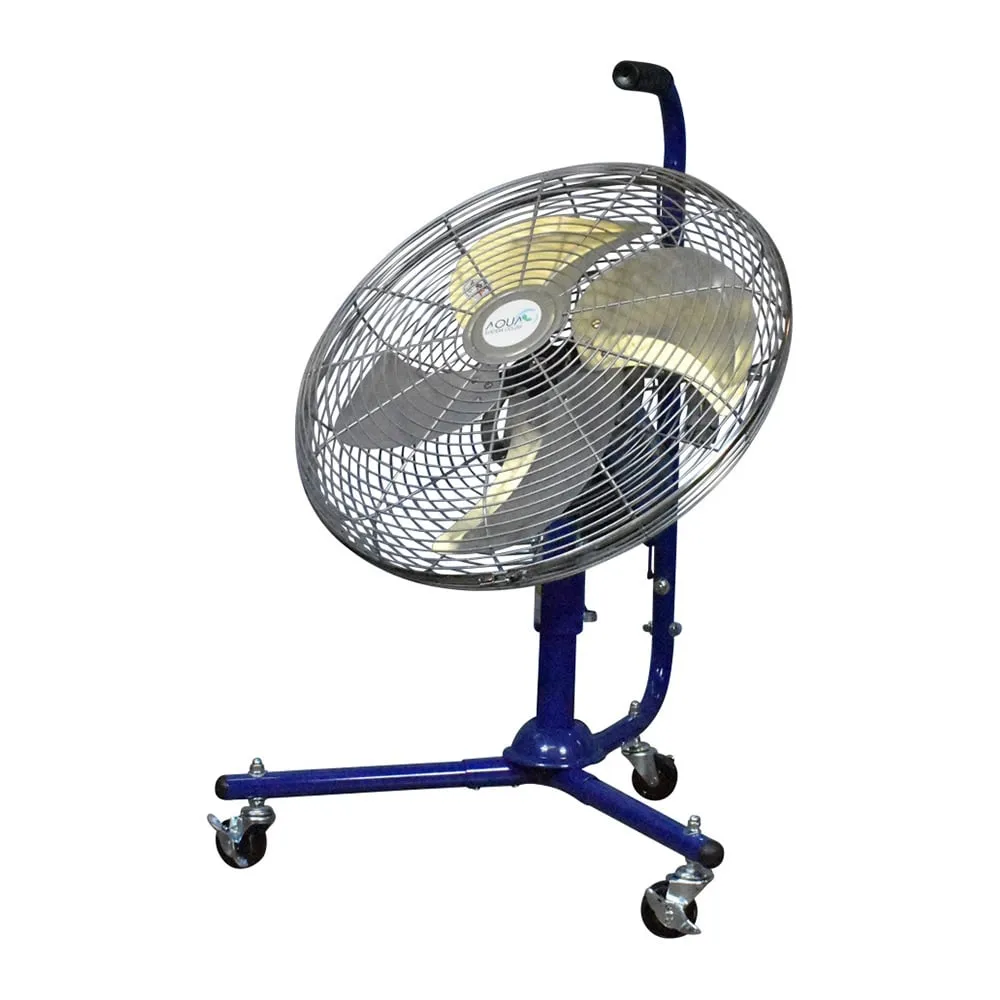

4-4067-01 Unoiled Air motor Factory Fan (floor Type) AFF-18NL
model:
4-4067-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 4-4067-01 Features Swing and angle adjus […]
Contact Us
Product Details
Product Model: 4-4067-01
Features
- Swing and angle adjustment functions are included.
- It is an air-motor type that does not use electricity and can be used in explosion-proof areas.
- The number of revolutions can be adjusted continuously by tightening the air valve.
Spec
- Type: Floor
- Swing angle: left/right/70 degrees, up/down angle/7 steps
- Material: Body/Steel, Blade/Aluminum
- Fan diameter: 450 mm
- Recommended compressor horsepower: 3 PS or more
- Operating air pressure: 0.4 ~ 0.6 MPa
- Air consumption: 0.33 m 3/min
- Size (mm): 525 x 536 x 792
- Weight (kg): 10.4
- Air plastic size: 20 PM
