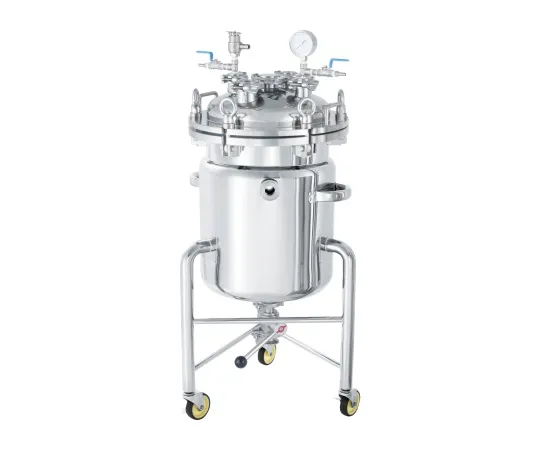

62-1372-69 Jacket Type Flange Open Pressurizing Container with Leg Pressurizing Unit 20L PCN-O-J-L-20-UT
Product Description
Product Model: 62-1372-69Product Brand: MONOVATE Co., L […]
Contact Us
Product Details
Product Model: 62-1372-69
Product Brand: MONOVATE Co., Ltd.
Features
- We have prepared pressure vessels and peripheral parts necessary for pressurization.
- The pressure vessel is a helule-open type that is easy to clean.
- Since it is a lower discharge, the contents can be pumped without remaining.
- Pressure feeding can be performed while adjusting the temperature.
Spec
- Capacity: 20 L
- Weight: 34.5 kg
- inner diameter (jackets): φ 309.5 mm x overall height H 861 mm
- Material: Container body, Lid handles, legs / SUS304, O-ring / Silicone rubber, caster / SUS + urethane car (2 pieces with inner stopper), and jacket nozzle / 1S rules
- Surface treatment: Inside and outside buffff polishing
- pressure of *** (R.T.): Main body 0 to 0.18 MPa Jacket 0 to 0.18 MPa
- [Accessory Set] 1 pressurization valve 2 safety valve 3 pressure valve 4 pressure gauge 5 sight window
