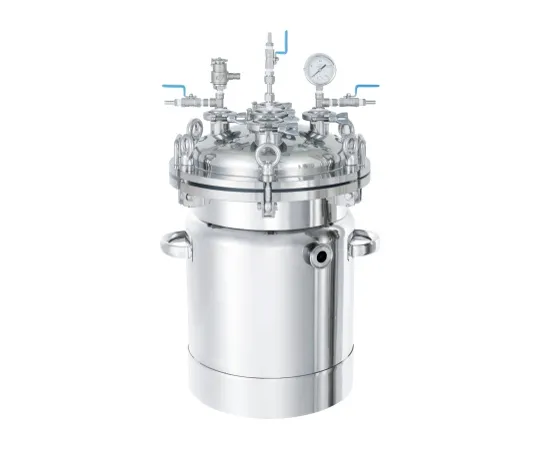

62-1372-50 Jacket Type Flange Open Pressurizing Container Pressure Feeding Unit 20L PCN-O-J-20-UT
Product Description
Product Model: 62-1372-50Product Brand: MONOVATE Co., L […]
Contact Us
Product Details
Product Model: 62-1372-50
Product Brand: MONOVATE Co., Ltd.
Features
- We have prepared pressure vessels and peripheral parts necessary for pressure feeding.
- The pressure vessel is a flange-open type that is easy to clean.
- This unit can perform pressure feeding at the top discharge.
- It is possible to pressure feed while adjusting the temperature.
Spec
- Capacity: 20L
- Weight: 31kg
- Inner diameter (jacket): Φ309.5mm x total height H567mm
- Material: Container body, lid, handle, hakama/SUS304, Clamp band/SCS13, Packing/Silicone rubber (option/fluorine rubber), Jacket unit nozzle/1S ferrule
- Surface treatment: Inner and outer surfaces buffing
- Used pressure (room temperature): Body 0 - 0.18MPa, Jacket 0 - 0.18MPa
- [Accessory set] (1) pressurization port (2) safety valve (3) liquid feeding port (4) pressure gauge (5) sight glass
