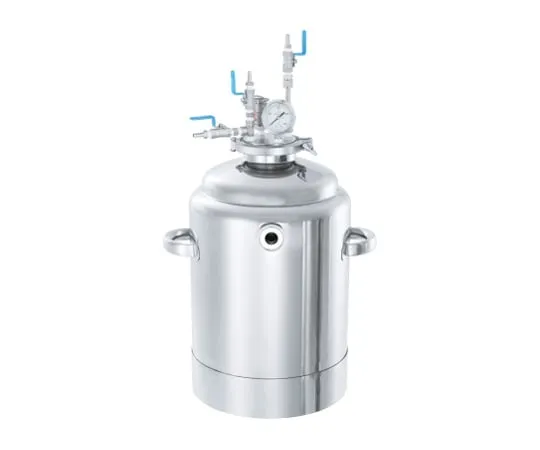

62-1372-38 Jacket Type Pressurizing Container Pressure Feeding Unit 5L PCN-J-05-UT
Product Description
Product Model: 62-1372-38Product Brand: MONOVATE Co., L […]
Contact Us
Product Details
Product Model: 62-1372-38
Product Brand: MONOVATE Co., Ltd.
Features
- We have prepared pressure vessels and peripheral parts necessary for pressure feeding.
- This unit can perform pressure feeding at the top discharge.
- The lid and clamp are light and easy to handle.
- It is possible to pressure feed while adjusting the temperature.
Spec
- Capacity: 5L
- Weight: 7.5 kg
- inner diameter (jackets): φ 208.3 mm x overall height H 358 mm
- Material: Container main, Lid, handle, hakama / SUS304, clamp band / SCS 13, packing / Silicone rubber (Options / Fluorine Rubber), and jacket nozzle / 1S rules
- Surface treatment: Inside and outside buffff polishing
- pressure of *** (R.T.): Main body 0 to 0.4 MPa Jacket 0 to 0.18 MPa
- [Accessory Set] 1 pressure inlet 2 safety valve 3 pressure gauge
