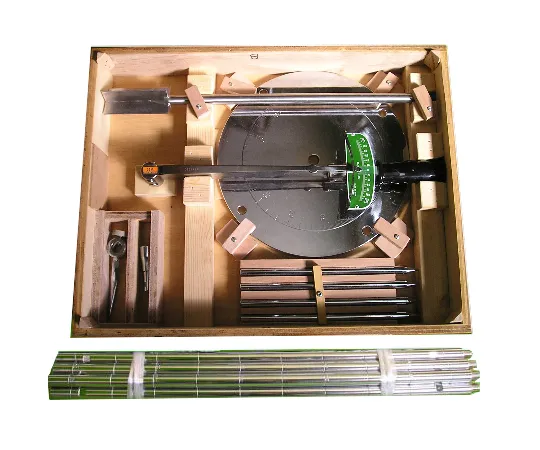

62-0861-07 Portable Vane Test Equipment S-233
Product Description
Product Model: 62-0861-07Product Brand: Nishinihonshike […]
Contact Us
Product Details
Product Model: 62-0861-07
Product Brand: Nishinihonshikenki
Spec
- Vane rod: Vane dimensions: Width 50mm x height 100mm stainless steel, Total length including rod 500mm
- Extension rod: Stainless steel outer diameter 16mm x length 500mm, 10 with whole circumference ruled line per 50mm
- Scale disk: Scale 0 - 360°, Minimum scale 1°, Fixed pill 4 pieces
- Torque meter: Capacity 115kg・cm (You can select 460kg・cm at your request)
- Tip corn:
- Hardened steel: Tip angle 30°
- Conical bottom area 6.4cm2: 2 pcs
- Accessories: Scale guideline, Attachment for torque measurement, Wrench 2 pieces, Wooden storing box, Cloth storage bag
