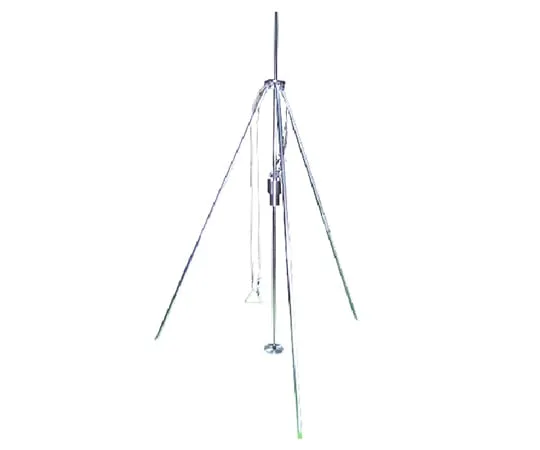

62-0860-94 Public Works Research Institute Penetrometer S-213
Product Description
Product Model: 62-0860-94Product Brand: Nishinihonshike […]
Contact Us
Product Details
Product Model: 62-0860-94
Product Brand: Nishinihonshikenki
Features
- It was designed by the Ministry of Construction's Civil Engineering Research Institute, and it can measure the relative bearing capacity strength of road subgrade and subbase from the relationship between the number of strikes of heavy cones and the amount of penetration, and also the N value, and it is applied for the same purpose as CBR test and flat plate loading test.
Spec
- Corn: Tip angle 60°, Conical bottom φ30mm
- Penetration rod: Length 1000mm φ25, Carved seal per 10mm
- Guiding rod: Length 1000mm φ25, Bottom weight rest: 1 piece
- Weight: Weight 5kg: 1 pcs
- Guide joint rod: Length 850mm φ25: 1 piece
- Tripod: Length 2000mm (2 pieces joint), With block for wire: 1 set
- Wire: φ3mm, With handle: 2
- Penetration guidance instruction plate: Ring type
