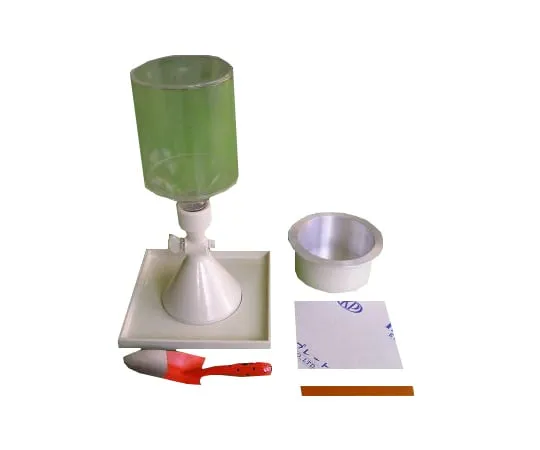

Spec

• Jar:
• Capacity: Approx 4 liters
• Bottle with acrylic bottom
• Male screw can be connected to attachment.
• Attachment:
• Pycnometer top and valve to connect a jar are included.
• Valve guide with diameter 12.5mm, and funnel with bottom *** diameter 162mm and height to the attachment 134mm are integrated.
• Material: Aluminum alloy
• Base plate:
• Metal square plate ***d when a funnel is not arranged to the ground closely and when test hole size is larger or smaller than the funnel diameter. Hole in the center of the plate is 162mm whose size is the same as the funnel, and outer dimension of the plate is 300 x 300mm.
• Standard masu:
• Metal standard masu ***d for measuring unit weight of sand.
• Dimensions: Inner diameter 169.4mm x inner high 88.8mm
• Capacity: 2,000cc
• Capping plate
• Used for measuring the weight of the sand that fills a funnel. Thickness 6mm, One side length 200mm, Square and transparent vinyl chloride.
• Components: Straight edge/flat type 200mm/shovel for transplanting: 1 pcs
