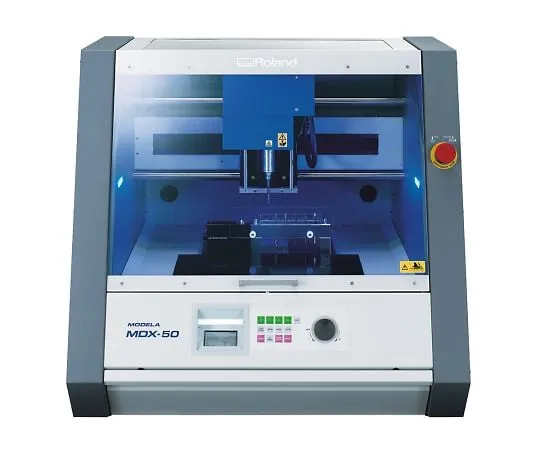

3-9897-01 3D Cutting Machine MODELA MDX-50
Product Description
Product Model: 3-9897-01Product Brand: Roland DG Featur […]
Contact Us
Product Details
Product Model: 3-9897-01
Product Brand: Roland DG
Features
- NC codes created by students are output in MDX-50, enabling students to experience trial and error and use it as a tool for learning "machining".
- CAM software for many file formats is included, allowing you to quickly process data created in 3DCAD.
- Equipped with an auto tool changer (ATC) as standard, there is no downtime associated with tool replacement, and automatic operation from roughing to finishing is possible at once.
- Tool length measurement and registration of correction value are also automatically performed, so even beginners can handle it by prorating.
Spec
- Specification: Main unit
- Processable material: Plastic (Metals are not included.) such as chemical wood and modeling wax
- Operating range: 400 x 305 x 135mm
- Mountable work size: 400 x 305 x 100mm
- Shaft drive system: stepping motor
- Operating speed: XY/7 to 3600mm/min, Z/7 to 3000mm/min
- Software resolution: RML-1/0.001 mm/Step, NC Code/0.001 mm/Step
- Mechanical resolution: Half Step/0.01 mm/Step
- spindle motors: brushless DC motor
- Spindle rotation speed: 4500 to 15000rpm
- Tool capacity: 6 pieces (1 piece detected pin in common use)
- Mountable tool: Shank diameter/φ6mm, Blade-tip Diameter/φ6mm or less, Length/30 to 90mm
- Interface: USB
- Control Commands: RML -1, NC Code
- power supply condition : AC100V ±10% 50/60Hz (Overvoltage category: Category II, IEC 60664 -1)
- Power consumption: about 95W
- Operating sound: Operating/60dB (A) or less (uncut), Standby/45dB (A) or less
- Outer dimensions: 760 x 900 x 732mm
- Weight: 122kg
- Accessories: power cord, power supply Plug Adapter, USB Cable, Manual, Software CD-ROM, Detected pin, Hex Driver, Hex Wrench, Spanner, Tool Holder, Tool Positioning jig, Z0 Sensor, etc.
- *Control PC and 3DCAD are not included.
