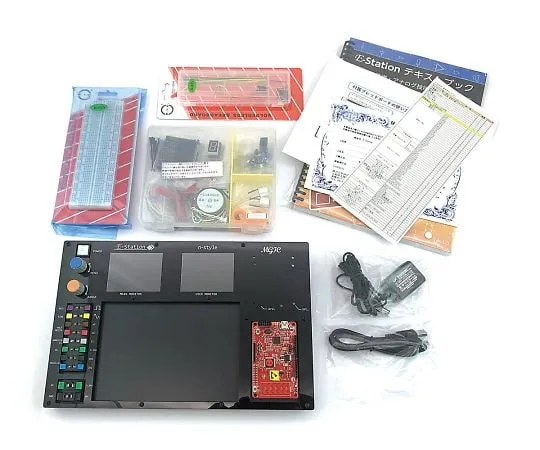

3-9838-11 Electronic Circuit Learning Kit E-Station n-style
Product Description
Product Model: 3-9838-11Product Brand: MGIC Features Th […]
Contact Us
Product Details
Product Model: 3-9838-11
Product Brand: MGIC
Features
- There are two oscilloscopes that allow you to see the waveform of the signal.
- The signal generator allows you to see the actual movement of electricity and electrons while viewing the waveform with an oscilloscope.
- A Pioneer kit with Cypress PSoC4 is included for both hard and soft experiments.
- Equipped with a voltmeter and ammeter, you can check voltage and current values anywhere. A complete set of components, including 3.3 V and 5 V DC power supplies, a breadboard, and resistors and ICs, is also included, so you can start studying electricity and electronics immediately.
- With Pioneer Kit, you can write programs in c language, configure hardware components, pin placement, etc., set up analog circuits on a breadboard, and combine them to achieve various circuits.
Spec
- Board color: black
- Number of experimental themes: 49
- Number of pieces: 1 set
- Body size: 310 x 210 mm
- Power supply: 5 VDC/Current consumption: approx. 200 mA (when basic function is operating)
- Oscilloscope: Common to 2CH and Time settings (Gain can be individually set)
- Weight: approx. 630 g (includes Pioneer Kit)
- Display
- Resolution: 240 RGB x 320
- Size: Width 48.6 mm x 64.8 mm
- Chip ***d PSoC 5 LP (CY8C 5868 AXI-LP035)
- Voltmeter: V1, V2: 0 ~ 5 V
- Resolution: 1 mV
- Ammeter: I: 0.01 mA to 100 mA (internal resistance: 30 ohms)
- signal generator
- Frequency setting: SINE, RECT Individually configurable, SINE: 4 Vp-p/10 Hz to 76 kHz/25 mA driving capacity, RECT: 5 Vp-p/1 Hz to 1 MHz/8 mA (L) to 4 mA (H) driving capacity
- Time range: 10 micros/D to 50 ms/D (12 levels)
- Input voltage range (Gain 1, Gain 2): 20 mV/D to 4 V/D (8 levels)
- Input voltage range: 0 ~ 5 V
- Input Impedance: 1 megohm or more
- experimental power supply
- 5 VDC: Current supply capacity 1A
- 3.3 VDC: Current supply capacity: 200 mA
