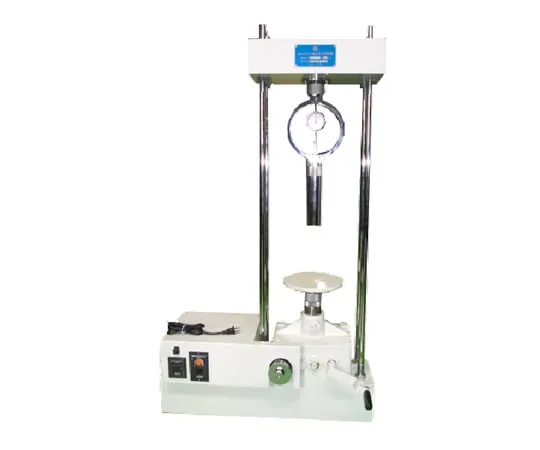

62-0860-77 Electric CBR Test Equipment S-175
Product Description
Product Model: 62-0860-77Product Brand: Nishinihonshike […]
Contact Us
Product Details
Product Model: 62-0860-77
Product Brand: Nishinihonshikenki
Features
- Since the load mechanism is electrically driven and the load speed can be kept constant, perfect strain control test is possible without individual error in operation.
Spec
- Load mechanism: 4 pillars type worm/gear 1 set
- Load speed: 1mm/min
- Free rotation by electric continuously variable transmission, with terminal 0.5 - 1.5mm/min
- Load measurement: Precise proving ring type
- Capacity: 50kN
- Electric motor: AC100V single phase, 0.4kw
- Body load: 70kg
- Machine dimensions: 500 x 650 x 1200mm
- Reduction gear: 400W
- Electric continuously variable transmission type
- Accessories: Penetration piston: 1, Dial gauge 1/100 - 20mm: 2, Dial gauge mounting metal fitting: 1
