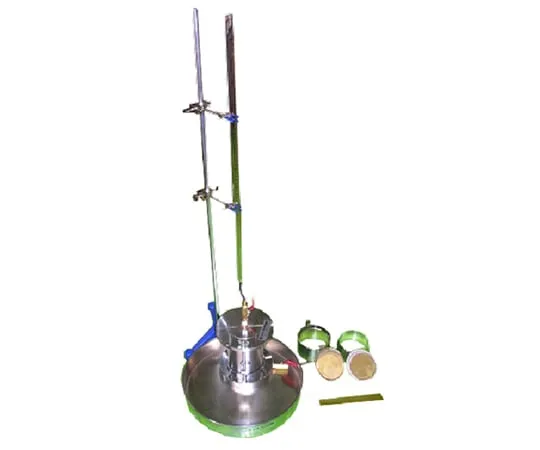

62-0860-64 Falling Head Permeability Tester S-163
Product Description
Product Model: 62-0860-64Product Brand: Nishinihonshike […]
Contact Us
Product Details
Product Model: 62-0860-64
Product Brand: Nishinihonshikenki
Features
- Permeability equipment in accordance with the Variable Water Level Permeability Test Law specified by JISA1218. This test measures the amount of water level drop and the elapsed time when a certain water level difference is initially penetrated through a specimen with a certain cross section and length. It is applied to a relatively wide range of soil.
Spec
- Water-permeable cylinder: Inner diameter φ100 x height 127.5mm
- Steel tube inner cylinder upper and lower attached frame, Sealed top cover and low plate consisting of upper and lower board
- Circular steel mesh plate that fixes both ***s of water-permeable cylinder and includes water draining and feeding port
- Diameter 98mm sieve opening: 425μ, 75μ 1 sheet each
- Diameter 94mm sieve opening: 425μ, 75μ 1 sheet
- Stand, pipe: Burette 100mL
- Overflow water tank: Diameter 330mm, Depth 45mm steel container including overflow port
- Accessories: Cutter/1
*This product might require extra fees.
