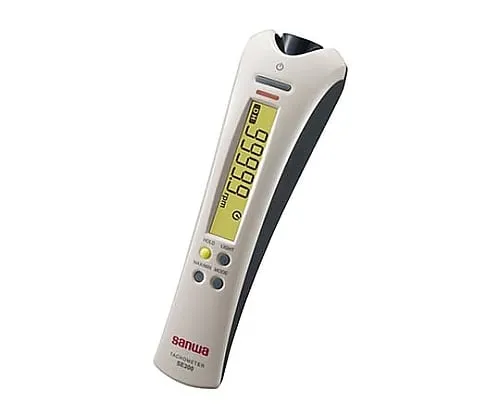

62-0855-02 Revolution Indicator Calibration Document 3 Points (Brand New Calibration) SE300
Product Description
Product Model: 62-0855-02Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 62-0855-02
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- The design adopts a streamline shape for stable measurement with both hands.
- The red visible light photoelectric reflection system was adopted as the measuring method, and the reflection detection distance was 500 mm, and it was measured safely.
- Can also be ***d as a contact type rotameter with the optional contact measurement attachment (ENC -3).
- MAX/MIN display function.
- Auto power off in about 2 minutes (* can be released) • Can be fixed using a commercially available camera tripod.
Spec
- Non-contact type revolution indicator usually, Available to change to contact type with optional mounting (ENC-3).
- rpm: Non-contact type: 30.0 - 99999, Contact type: 30.0 - 19999
- rps: Non-contact type: 0.50 - 1600.0, Contact type: 0.50 - 333.00
- ms: Non-contact type: 0.600 - 1999.0, Contact type: 3.0 - 1999.0
- count: Non-contact type: 0 - 99999, Contact type: 0 - 99999
- m/min: Non-contact type: -, Contact type: 3.0 - 1999.0
- m/s: Non-contact type: -, Contact type: 0.05 - 33.00
- Reflection detection distance: Approximately 50 - 500mm
- Power supply: R6P/LR6 (AA dry cell) 1.5V x 2
- Dimensions/mass: H210 x W60 x D50mm/approximately 218g
- Accessories: Reflection seal, Carrying case
- General calibration (with 3 ISO documents)… traceability certificate, certificate of test, calibration certificate
- *Calibration point follows the provisions of the Manufacturer.
- *Please tell us your name and address for the certificate.
