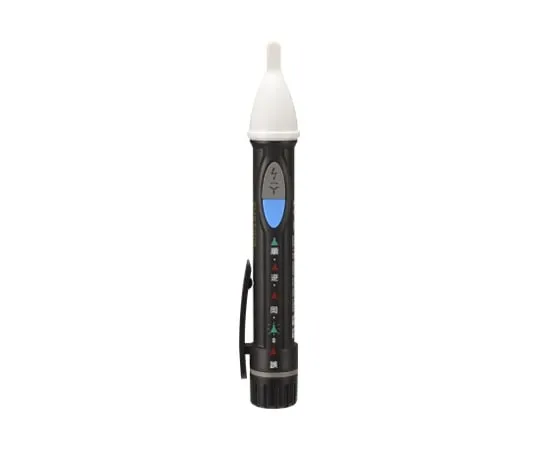

61-9953-47 Phase Rotation, Electroscope VP-01U
Product Description
Product Model: 61-9953-47Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 61-9953-47
Product Brand: CUSTOM corporation
Features
- It is a non-contact type pen type phase analyzer with a power inspection function.
- It can detect phase order deviation (normal phase, reverse phase, in-phase) in three-phase four-wire distribution lines.
- The LED and buzzer allow you to check the phase and power test by ear and eye.
- The work can be done in a shorter time than the conventional cable phase analyzer.
- It is a pen type, so it is convenient to carry.
Spec
- Voltage range: AC100 - 1000V
- Frequency: 45Hz - 65Hz
- Used temperature and humidity: -10 to +40℃, 75%RH or less (however, no condensation), +40 to +50℃, 45%RH or less (however, no condensation)
- Storage temperature and humidity: -20 to +60℃, 80%RH or less (however, Excluding battery, no condensation)
- Battery: AAA dry cell x 2 pieces
- Battery life: Approximately 150 hours (when using alkaline dry cell)
- Dimensions: W21 x H153 x D26mm
- Weight: Approximately 40g (including cell)
- Accessories: Instruction manual:
- Calibration: Unavailable
