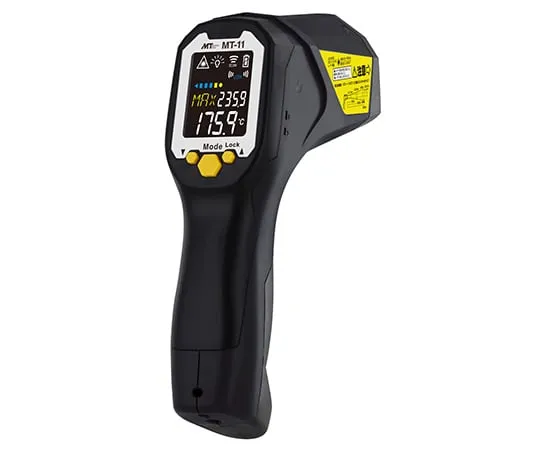

61-9950-50 Micro SD Corresponding Non-Contact Radiation Thermometer MT-11
Product Description
Product Model: 61-9950-50Product Brand: MOTHERTOOL CO., […]
Contact Us
Product Details
Product Model: 61-9950-50
Product Brand: MOTHERTOOL CO., LTD.
Features
- Emissivity variable (0.10~1.00).
- High accuracy DS ratio =60:1.
- Data can be transferred to a PC using a microSD card or USB output.
- Comes with a backlight for convenient measurement in the dark.
- k With Thermocouple Terminal.
Spec
- Mode switching: Maximum, minimum, average temperature difference, Hi, Lo, K thermocouple
- Response time: Approximately 1 second
- D: S ratio: 60: 1
- Data output: PC connection available
- Measurement range (radiation temperature): -35℃ to +1600℃
- Measurement range (K thermocouple) -64℃ to +1400℃ (*Measurement range varies dep***ing on the K heat sensor that you want to ***. )
- Resolution: 0.1℃ (-9.9 to +999.9℃) otherwise 1℃
- Accuracy (radiation temperature -35℃ - 0℃): +/- [1.5 + (0.05 x ℃)] (℃ is measured value)
- Accuracy (radiation temperature 0℃ to +1600℃): +/- 1.5% or +/- 1.5℃, whichever is larger
- Accuracy (K thermocouple) +/- 1% or +/- 1℃, whichever is larger
- Emissivity: Variability available 0.10 - 1.00 (at the factory: 0.95)
- Used temperature and humidity range: -10 to +50℃, 70%RH or less (however, non condensing)
- Storage temperature and humidity range: -10 to +50℃, 80% RH or less (however, non condensing)
- Power supply: AA battery 2 pieces
- Battery life: Approx 16 hours (continuous ***, when using alkaline cell)
- Dimensions: 176 (W) x 203 (H) x 58 (D)
- Weight: Approx 401g (not including cell)
- Standard accessories: Carrying case, USB cord, CD driver, SD card, instruction manual, AA battery x 2 (trial cell)
