3-9719-01 Two-Dimensional Precision Vise FT-USV80
model:
3-9719-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 3-9719-01 Features A precision vise that […]
Contact Us
Product Details
Product Model: 3-9719-01
Features

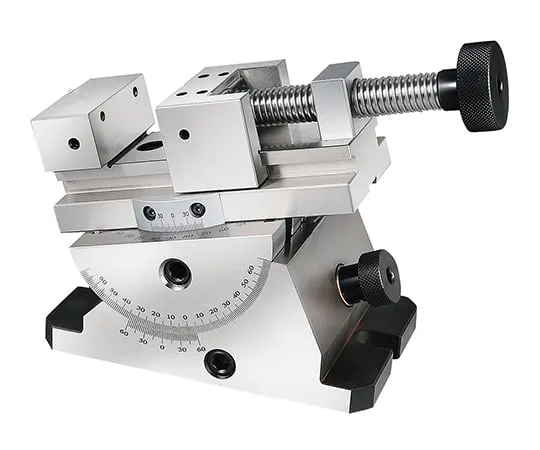

- A precision vise that can be rotated 360° horizontally and inclined 45° vertically.
- The tick marks make it easy to set the angle.
Spec
- Weight (kg): 14
- Material: Rotating part/FCD 45, Vise Part/SKS3
- Hardness: Rotating part/HRC 43 to 47, Vise Portion/HRC 50 to 60
- Parallel: 0.006 mm/100mm
- Linear: 0.006 mm/100mm
- Size: 178 x 110 x 137mm
- Opening: 0 to 80mm
- Test results report is included
