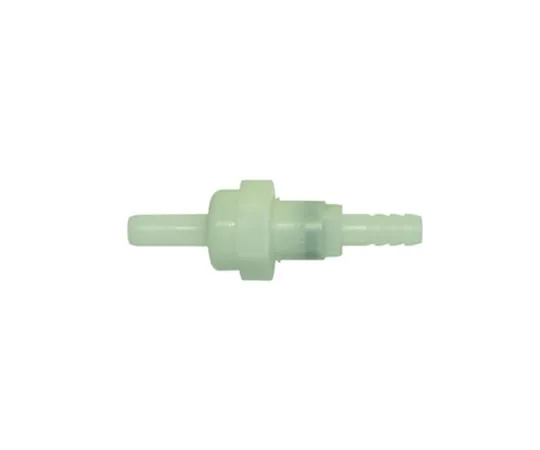

1-6550-11 Check Valve Polyacetal 001CV
model:
1-6550-11
category:
automaticdiluter
Product Description
Product Model: 1-6550-11 Features Prevents backflow of […]
Contact Us
Product Details
Product Model: 1-6550-11
Features
- Prevents backflow of liquids and gases.
Spec
- Model number: 001CV
- Material: Body/POM (polyacetal), Inner spring, ball/Stainless Steel (SUS304), Packing/NBR (nitrile rubber)
- Minimum valve opening pressure: 0.01MPa (10KPa) or less
- Fitting dimensions: Outer diameter/φ6.4mm, Inner diameter/φ4mm
- Fitting shape: Inlet side/nipple, Outlet side/straight
- Allowable temperature limit: About 90℃
- Total length x both fittings length: 56 x 15.5mm
- Quantity: 2 pcs
- RoHS3 (EU)2015/863 Certificates can be issued
