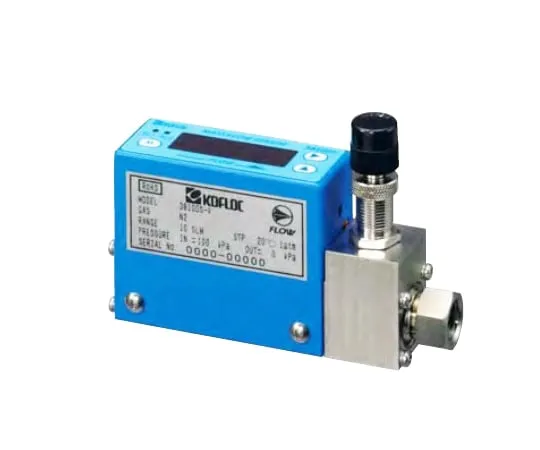

61-9947-91 Low-Cost Mass Flow Meter with Indicator 3810DSII with Valve 10Sccm/Min 3810DS2-V-I-RC1/4-AIR-10SCCM-0.1MPA-0MPA-20
Product Description
Product Model: 61-9947-91Product Brand: KOJIMA INSTRUME […]
Contact Us
Product Details
Product Model: 61-9947-91
Product Brand: KOJIMA INSTRUMENTS INC.
Features
- Small and lightweight low cost mass flow meter with indicator.
- Integrated with precision needle valve, flow control is also possible.
- Supports instantaneous flow rate display and accumulated flow rate display.
- External output of the flow rate signal is possible.
- There are two alarm outputs for flow monitoring.
- Can be driven by DC24V power supply only (optional AC adapter: PSK-38DSII).
- If requested, it can be made for fluids other than AIR (N2, H2, He, Ar, O2, CO2, and other gases). Please consult me.
Spec
- Sensor: Thermal sensor
- Fluid: AIR (*Other N2, H2, He, Ar, O2, conforms to CO2, and various other gases. Contact us for any questions. )
- Full scale: 10sccm/min (20℃ 1atm volume flow rate display) (*0℃ calibration capable. Contact us for any questions. )
- Accuracy: Within ±2%F.S. @25℃ (when more than F.S. 21L/min, within ±3%F.S. @25℃)
- Pressure resistance: 1.0MPA (G)
- Gas contact unit material: Stainless Steel (SUS303), PTFE, FKM
- Connection port size: RC1/4 (*For other fitting, consult with us. )
- Required power: DC 24V±5% 100mA (* AC power adapter PSK-38DSII available. If you need other external cable, contact us. )
- Output signal: 4-20mA (*Voltage Specification (1 - 5V) capable. Contact us for any questions. )
