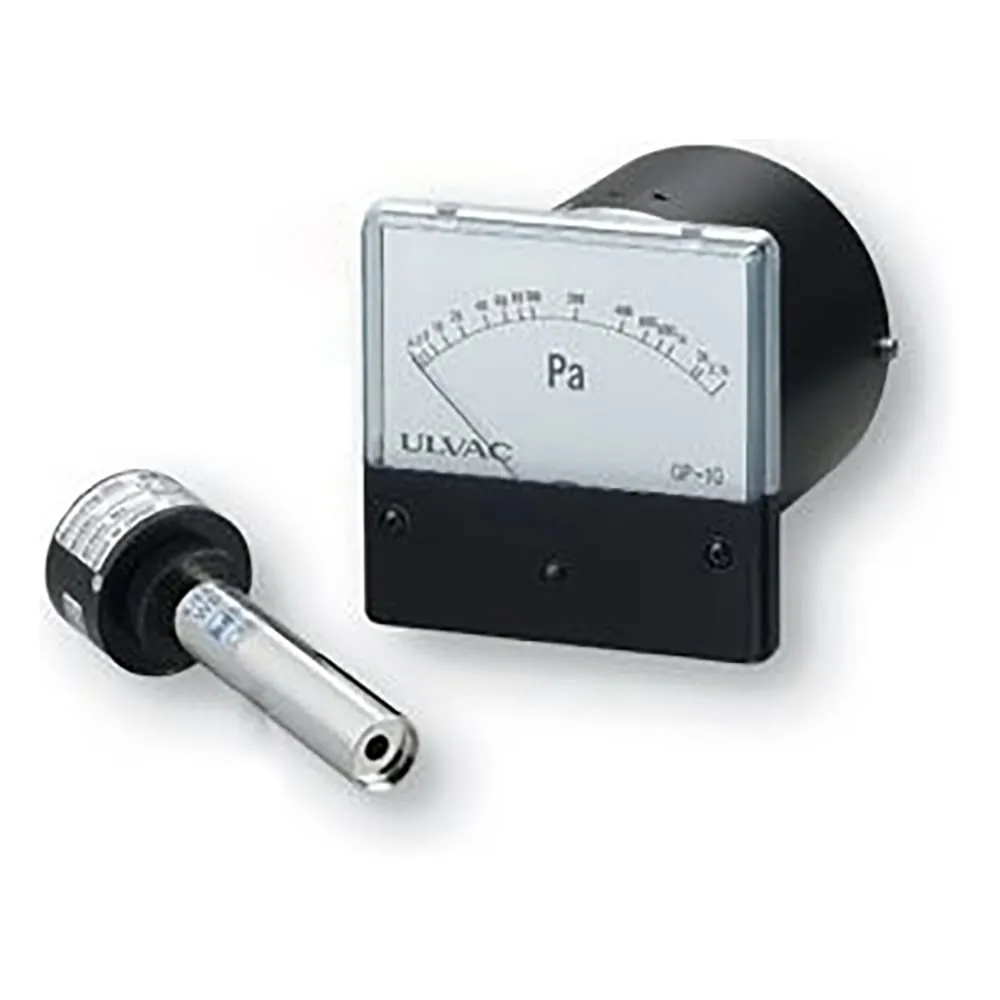

2-080-01 Pirani Vacuum Gauge GP-1G/WP-01
Product Description
Product Model: 2-080-01Product Brand: ULVAC, Inc. Featu […]
Contact Us
Product Details
Product Model: 2-080-01
Product Brand: ULVAC, Inc.
Features
- Constant temperature type Pirani vacuum gauge utilizing heat conduction of gas.
- Low vacuum region (0.4~2700 Pa) can be measured.
- The filament material ***s platinum (Pt), which has excellent durability.
Spec
- Probe specification: φ18mm gage port mounting
- Measurement range: 0.4 - 2700Pa
- Display: Analog
- Recorder output: DC0 - 10mV nonlinear output
- Probe cable length: 5m
- Power voltage: AC100 - 240V/10VA
- External dimensions: 100 x 130 x 100mm
- Mass: 0.7kg
- Model number: GP-1G/WP-01
