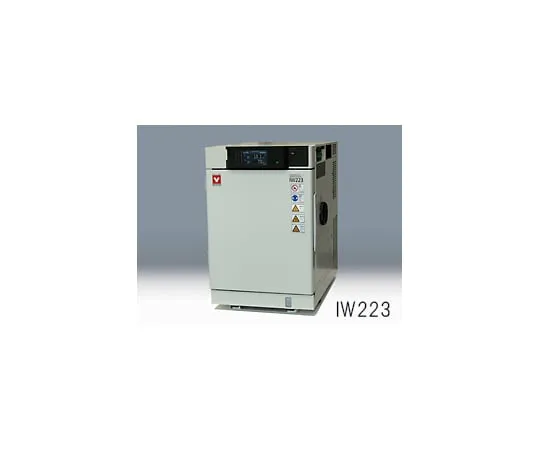

61-9661-85 Small Thermohygrostat with Inner Door IW223
Product Description
Product Model: 61-9661-85Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9661-85
Product Brand: Yamato Scientific Co., Ltd.
Features
- Compact desktop design, can be ***d with 100 V AC
- Provides storage space in the ceiling, and can easily store wires for measuring machines etc.
- Has a color LCD touch panel
- Can operate with gloves on. Resistant film type allows information display, program 8 patterns (99 steps) registration, and multi-language display
- Has a USB memory port
- Allows direct continuous recording (4GB/1 second, sampling/10 years of continuous recording) and extraction of internal memory storage data. (A USB flash drive is not included.)
- Equipped with Web Application
- Remote Monitoring/Control/Edit Program/Start/End/E-mail Notification (requires Ethernet connection)
Spec
- Specification with inner door
- System: BTHC system
- Temperature range: -20 to +150℃
- Humidity range: 30 - 95% RH (see the figure for temperature and humidity control capacity range)
- Temperature variation: +/- 0.3℃ (-20 to +100℃), 0.5℃ (+100.1 to +150℃)
- Temperature gradient/Space temperature deviation: 2.5℃ (-20 to +100℃), 4.0℃ (100.1 to +150℃)
- Temperature rise time: -Within 55 minutes from -20 to +150℃ (settings: 153℃)
- Temperature falling time: Within 20 minutes from +20 to -20℃ (possible delays when an inner door is equipped) (settings: -23℃) from +20℃
- Humidity variation: +/- 3.0% RH
- Humidity gradient/Space humidity deviation: 8.0% RH
- Inner dimension (mm): Width 300 x Depth 250 x Height 300 (excluding protrusions)
- Outer dimension (mm): Width 440 x Depth 695 x Height 690 (Depth including protrusions: 747mm)
- Capacity: 22.5L
- Power voltage (50/60Hz): AC100V
