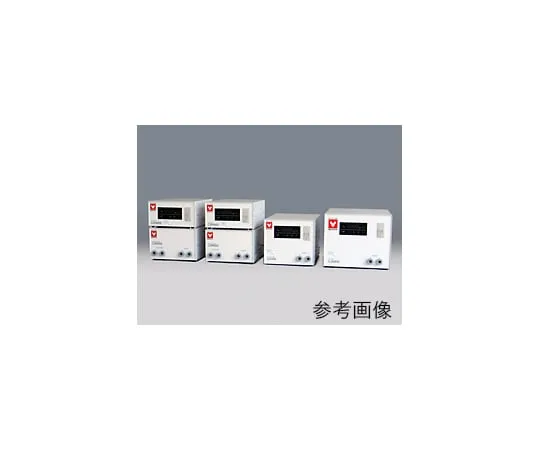

61-9661-55 Coolnics Circulator (Non-Flon Type) CTW402
laboratoryinstruments

61-9661-55 Coolnics Circulator (Non-Flon Type) CTW402

model: 61-9661-55
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9661-55Product Brand: Yamato Scientif […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9661-55
Product Brand: Yamato Scientific Co., Ltd.

Features

  • It is a small cooling water circulation device with low vibration by cooling and heating with a Peltier element.
  • It can be used as a constant temperature water tank that can cool, heat and keep your water tank warm by external open system circulation.
  • There is a water cooling heat dissipation system with a water supply connection (CTW type) and an air cooling heat dissipation system without a water supply connection (CTA type).
  • We have prepared an integrated type that is convenient for tabletop use and a separate type (S type) that is suitable for installation.
  • RS485 communication function is provided as standard and centralized management from PC is possible.

Spec

  • System: Water-cooled electron cooling/external open system circulation/integral (S: Separate)
  • Operating temperature range: -10℃ to +70℃
  • Temperature control accuracy: +/- 0.1℃
  • Cooling capacity (at liquid temperature 20℃): 126kcal/h(147W)
  • Pump performance (50Hz): Maximum flow rate: 8L/min, Maximum discharge pressure: 29.4kPa
  • Outer dimensions: Integral: 291 x 380 x 360
  • Circulation mouth nipple diameter: Outer diameter φ12.7
  • Thermo module number, 4 pcs
  • Power supply: AC100V
