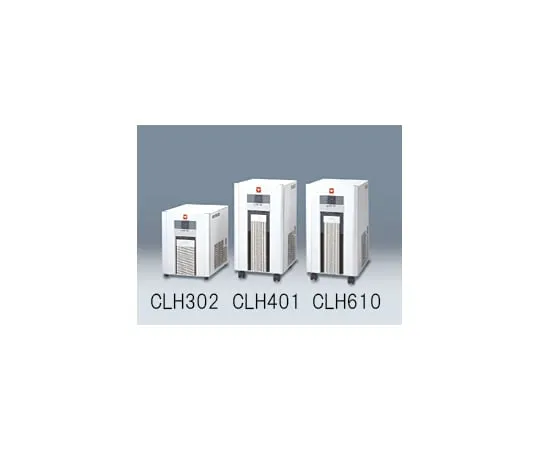

61-9661-36 Cool Line CLH302
Product Description
Product Model: 61-9661-36Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9661-36
Product Brand: Yamato Scientific Co., Ltd.
Features
- External open system precision circulation device with operating temperature range of −10 to +80°C (CLH302), −15 to +80°C (CLH401/610).
- With the *** of a flow control valve, the circulating pump flow rate can be freely set according to the size of the water tank.
- With the *** of flow sensors, the system detects a drop in the flow rate in the piping system, and protects the device when the alarm lamp is lit and operation is stopped.
- Various functions such as quick auto stop, auto stop, auto start operation, calibration offset function, temperature output terminal, RS485 external communication function are equipped as standard.
Spec
- System: External open system circulation with pump
- Operating temperature range: -10℃ to +80℃ (when setting the refrigerating machine operation 40℃ or less)
- Temperature control accuracy/temperature variation: +/- 0.1℃ - (JTmK05) at 10℃
- Temperature display unit: 0.1℃
- Cooling capacity: Approximately 450W (387Kcal/h) (at liquid temperature 15℃)
- Water tank volume: 1.5L
- Outer dimensions: Width 410 x depth 460 x height 550mm
- Power (50/60Hz): AC100V
