61-9660-56 Program Low-Temperature Incubator IN604W
laboratoryinstruments

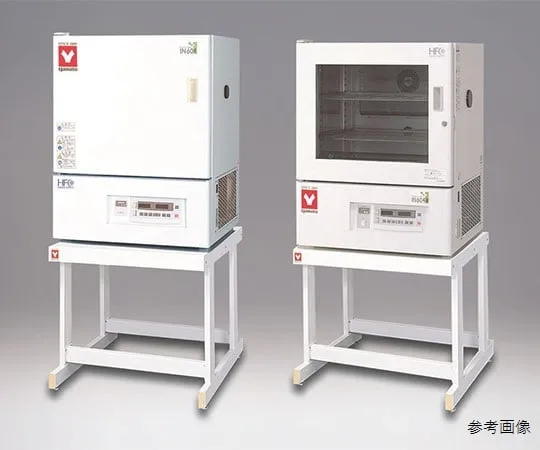

61-9660-56 Program Low-Temperature Incubator IN604W

model: 61-9660-56
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9660-56Product Brand: Yamato Scientif […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9660-56
Product Brand: Yamato Scientific Co., Ltd.

Features

  • It can be used for a wide range of tests, from thermostatic tests to environmental tests.
  • High-precision temperature control and uniform temperature distribution in the vessel have been realized by the forced circulation of the fan.
  • Large double glass doors are used, and triple glass, including the inner door, improves heat retention. (IN604 W Type)
  • Convenient sliding shaker installation table (optional) for easy installation of shaker and sample loading/unloading. (IN604 W Type)
  • Indoor light for easy viewing is standard. (10 W Fluorescent Lamp) (IN604 W Type)
  • The glass inner door minimizes temperature changes when observing the sample.
  • Refrigerant R404A is used to comply with CFCs regulations.
  • You can defrost manually using a dedicated key or automatically using a program.
  • After the power failure returns, the power failure compensation function automatically resumes operation at the set temperature.
  • It is equipped with extensive safety functions such as a refrigerator overload relay, an independent excess rise prevention device, an earth-leakage breaker with excess current, a self-diagnosis circuit (Temperature sensor abnormality, heater disconnection, SSR short circuit, main relay failure, automatic excessive rise prevention mechanism), and a buzzer warning when an abnormality occurs.

Spec

  • System: Forced air circulation
  • Operating temperature range: -10 to +50℃
  • Temperature control accuracy: +/- 0.3℃ (while the refrigerating machine is in continuous operation), +/- 1.0℃ (in refrigerating cycle operation)
  • Temperature distribution accuracy: +/- 1.0℃ (at 37℃ while the refrigerating machine is in continuous operation)
  • Time-of-arrival of highest temperature: 20 - 50℃ approximately 20 minutes
  • Time-of-arrival of lowest temperature: 20 to -10℃ approximately 55 minutes
  • Inner tank dimensions: Width 600 x Depth 477 x Height 500mm
  • Outer dimensions: Width 710 x Depth 645 x Height 913mm
  • Internal capacity: 143L
  • Shelf board load capacity: 15kg/board
  • Number of shelf rests/Shelf rest pitch: 13 stages/30mm
  • Power (50/60Hz): AC100V
