                                                            61-9660-54-90 【Global Model】Low Temperature Incubator (Programmable) IN804 IN804
Product Description
Product Model: 61-9660-54-90Product Brand: Yamato Scien […]
Contact Us
Product Details
Product Model: 61-9660-54-90
Product Brand: Yamato Scientific Co., Ltd.
   Features

- It can be ***d for a wide range of tests, from thermostatic tests to environmental tests.
- High-precision temperature control and uniform temperature distribution in the vessel have been realized by the forced circulation of the fan.
- Large double glass doors are ***d, and triple glass, including the inner door, improves heat retention. (IN604 W Type)
- Convenient sliding shaker installation table (optional) for easy installation of shaker and sample loading/unloading. (IN604 W Type)
- Indoor light for easy viewing is standard. (10 W Fluorescent Lamp) (IN604 W Type)
- The glass inner door minimizes temperature changes when observing the sample.
- Refrigerant R404A is ***d to comply with CFCs regulations.
- You can defrost manually using a dedicated key or automatically using a program.
- After the power failure returns, the power failure compensation function automatically resumes operation at the set temperature.
- It is equipped with extensive safety functions such as a refrigerator overload relay, an indep***ent excess rise prevention device, an earth-leakage breaker with excess current, a self-diagnosis circuit (Temperature sensor abnormality, heater disconnection, SSR short circuit, main relay failure, automatic excessive rise prevention mechanism), and a buzzer warning when an abnormality occurs.
   Spec

- Circulation method: Forced air circulation
- Operating temp. range: -10~+50℃
- Temperature control accuracy: ±0.3℃(Refrigerator is in continuous operation) ±1.0℃(Refrigerator is in cycle operation)
- Temp. distribution accuracy: ±1.0℃(at 37℃ refrigerator is in continuous operation)
- Time required to reach highest temperature: +20 to +50℃ approx. 55 min
- Time required to reach lowest temperature: +20 to -10℃ approx. 90 min
- Internal dimentions(WxDxH): 600 x 477 x 1000mm
- External dimentions(WxDxH): 710 x 645 x 1630mm
- Internal capacity: Approx. 286L
- No. of steps/pitch: 23 steps/30mm
- Shelf load capacity : Approx. 15 kg/pc
- Power supply: AC220V 50/60Hz single phase 6A (plug is not included)
- Weight: Approx. 120kg
- Accessories: Stainless shelf x 5, Shelf bracket x 10, Manual
Related product recommendations
You may also be interested in the following products
61-9726-93 [Discontinued]Whole Pipette 1mL for Amyl Alcohol 10 Pieces TM-PIPET1AA-N
                                                                model: 61-9726-93
                                                                                                brand: AGC TECHNO GLASS (IWAKI)




                            ![61-9726-93 [Discontinued]Whole Pipette 1mL for Amyl Alcohol 10 Pieces TM-PIPET1AA-N](https://www.jgauge.com/wp-content/uploads/2025/05/fef9da172d4544852cb6be86befbe786.webp)

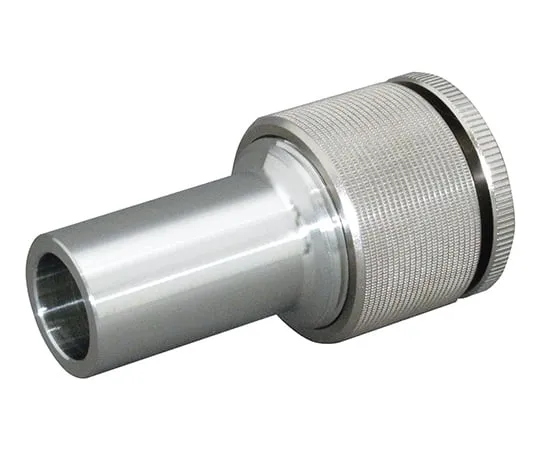

                            ![3-8110-01 [Discontinued]Seal Port 16 x 15 x 21.7 DG-15P](https://www.jgauge.com/wp-content/uploads/2025/06/253cb7cf47519ca9a6325504bc222006.webp)
