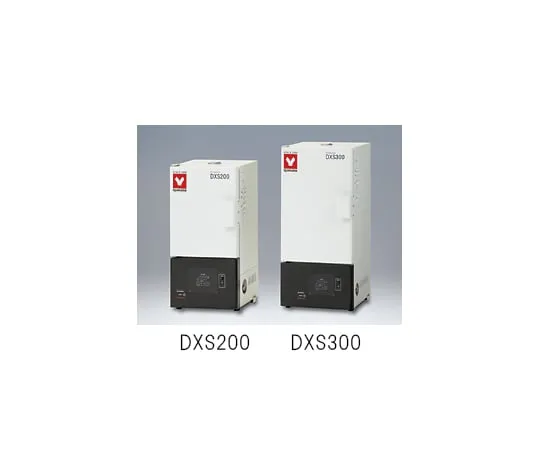

61-9660-36 Constant-Temperature Drying Oven DXS200
Product Description
Product Model: 61-9660-36Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9660-36
Product Brand: Yamato Scientific Co., Ltd.
Features
- Calibration offset function, power outage compensation function and key lock function are provided as standard.
- It comes with fall prevention metal fittings as standard.
- The shelf board can be selected at any position.
- The temperature control is PID controlled by a microcomputer, with auto start and auto stop timer.
- It is equipped with ground fault breaker, three kinds of controller sensor disconnection warning, excessive rise prevention mechanism (heater disconnection) and independent excessive rise prevention mechanism by hydraulic temperature regulator as standard.
- The door opening/closing direction can be changed by the user.
- * The temperature may not be controlled properly if a sample that generates heat is placed in the machine.
Spec
- System: Natural convection
- Performance
- Temperature control range: Room temperature +5 - 210℃
- Temperature control accuracy: +/- 1℃ (at 210℃)
- Temperature variation: +/- 3 (at 210℃)
- Temperature distribution accuracy: +/- 10℃ (at 210℃)
- Temperature gradient: 35℃ (at 210℃)
- Time-of-arrival of highest temperature: Approximately 60 minutes (room temperature +10℃ - 210℃)
- Configuration
- Interior: Stainless steel plate
- Exterior: Chromium-free electric zinc plating steel, chemical resistance baking finish
- Heat insulator: Rock wool
- Heater: Iron, chromium wire heater (400W)
- Exhaust opening: Stainless Steel (SUS304) inner diameter 30mm 1 pc on upper surface
- Door: Chromium-free electric zinc plating steel, chemical resistance baking finish
- Controller
- Temperature controller: PID control
- Timer: 1 - 99 hours 59 minutes/1 minute, 100 hours 0 minutes - 999 hours 50 minutes/10 minutes
- Temperature/Timer display: LED digital display
- Sensor: K class thermocouple
- Operation function: Constant value operation (timer setting for quick auto-stop, Auto start, Auto-stop selection)
- Additional function: Calibration offset, Power failure compensation function, Key lock
- Control panel: Sheet key (LED: Temperature, Timer lamp: Heater operation, Temperature abnormal), Main switch (electrical leakage breaker)
- Safety mechanism: Liquid pressure type independent excessive rise prevention device, Automatic temperature excessive rise prevention, Sensor input alarm, Electrical leakage breaker
- Standards
- Internal dimensions: Width 240 x Depth 250 x Height 340mm (including space under the lowest shelf board)
- Outer dimensions*2: Width 320 x Depth 340 x Height 685mm
- Internal capacity: Approximately 20L
- Power (50/60Hz) rated current: 100VAC 4.5A (15A)
- Weight: Approx 20kg
- Number of shelf rests/Shelf rest pitch: 5 stages/50mm
- Accessories: Shelf board 2 boards, Anti-tip bracket set
