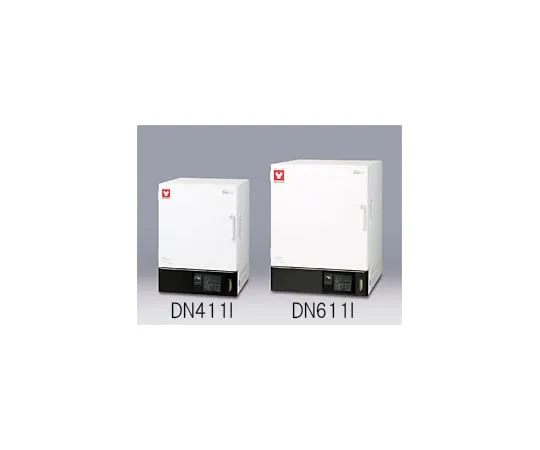

                                                            61-9660-22 Inert Oven DN411I
Product Description
Product Model: 61-9660-22Product Brand: Yamato Scientif […]
Contact Us
Product Details
Product Model: 61-9660-22
Product Brand: Yamato Scientific Co., Ltd.
   Features

- It is a thermostatic device that introduces N2 gas into the tank and enables temperature testing and heat treatment in an oxidation-free atmosphere.
- Operability/Function
- Heat resistance testing and heat treatment up to 360°C can be performed easily.
- The operating temperature range is wide and high precision temperature control is possible.
- In addition to various operation modes including program operation, various support functions such as calibration offset function, power failure recovery mode selection, ***r setting information storage and ringing function are provided as standard.
- Program operation of up to 99 steps, 99 patterns and repetition is possible.
- Equipped with power supply/operation time integration function.
- You can set the flow rate of nitrogen gas.
- Safety and maintenance: We have further enhanced safety features such as a self-diagnosis function and a digital setting indep***ent excessive rise prevention device. When the door is opened during operation, the door switch operates to turn off the fan and heater.
   Spec

- System: Forced air circulation
- Temperature control range: Room temperature +15℃ - 360℃
- Temperature control accuracy temperature variation: +/- 0.2℃ (at 360℃) JTmK05, +/- 0.6℃ (at 360℃) JIS
- Temperature distribution accuracy temperature gradient: +/- 3℃ (at 360℃) JTmK05, 12℃ (at 360℃) JIS
- Temperature rise time: Approximately 60 minutes
- Internal dimensions: Width 470 x Depth 450 x Height 450mm
- Outer dimensions: Width 640 x Depth 695 x Height 915mm
- Internal capacity: 95L
- Shelf board load capacity: Approximately 30kg/board
- Number of shelf rests/Shelf rest pitch: 12 stages/30mm
- Power (50/60Hz): Single phase 200V
